770340-1 | AMP

Plug housing, 2 pole, pitch 3.68 mm, straight, natural, 770340-1

Order No.: 34P6745
EAN: 4099889912852
MPN:
770340-1

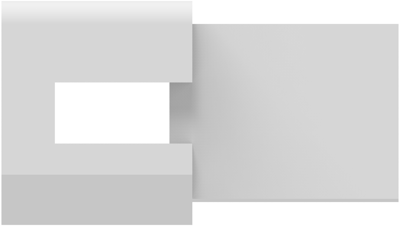

770340-1 AMP PCB Connection Systems Image 1

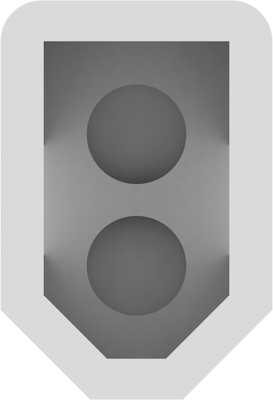

770340-1 AMP PCB Connection Systems Image 2

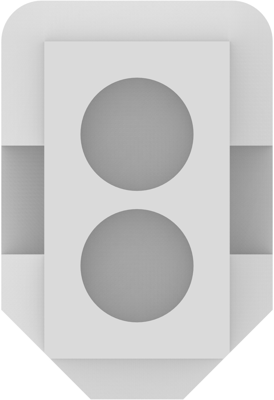

770340-1 AMP PCB Connection Systems Image 3

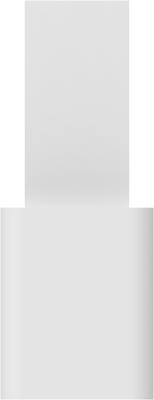

770340-1 AMP PCB Connection Systems Image 4

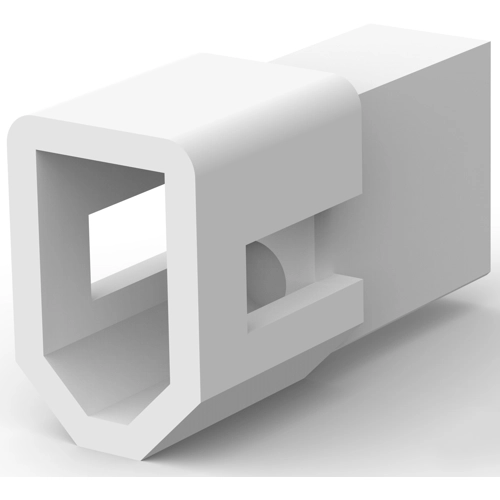

770340-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2689 € *
Available in 5 Days: 24,514 pcs. - if ordered today
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2689 €
10 pcs.
0.2487 €
25 pcs.
0.2321 €
50 pcs.
0.2106 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770340-1, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 3.68 mm
  • Row-to-Row Spacing: 3.68 mm [0.145 in]
  • Sealable: No
Technical specifications
Filter Property Value
Grid 3.68 mm
Contact type socket/pin
Version plug housing
Rated current 7 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 2 pole
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
