770335-1 | AMP

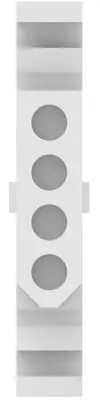

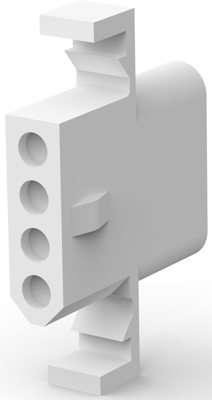

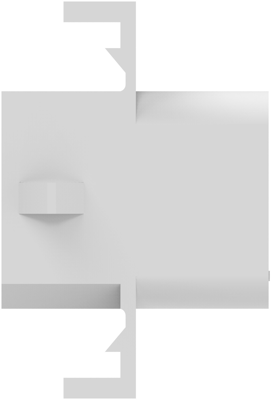

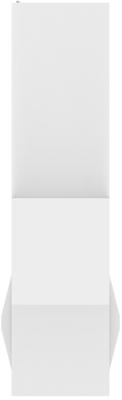

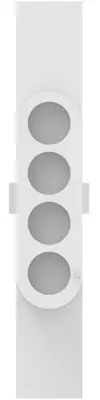

Socket housing, 4 pole, pitch 3.68 mm, straight, natural, 770335-1
Order No.: 34P6777
EAN: 4099889913170
MPN:
770335-1
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 403 pcs. - if ordered today
PCB Connection System, 770335-1, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.68 mm
- Row-to-Row Spacing: 3.68 mm [0.145 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.68 mm | |
| Contact type | socket/pin | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 4 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | socket housing | |
| Rated current | 13 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
