770331-1 | AMP

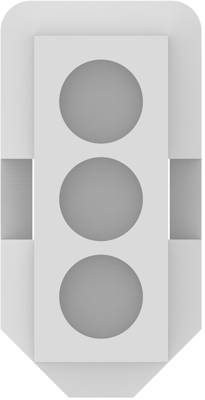

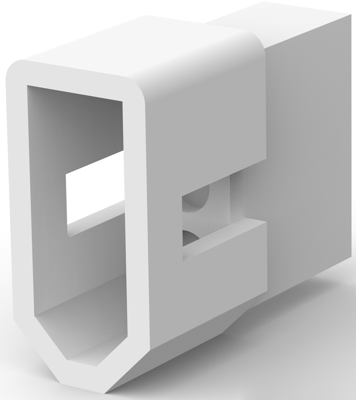

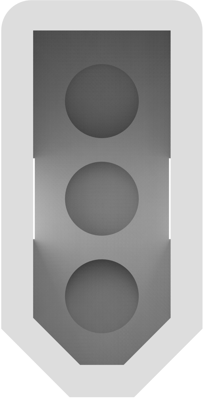

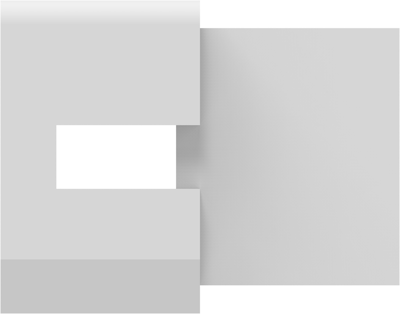

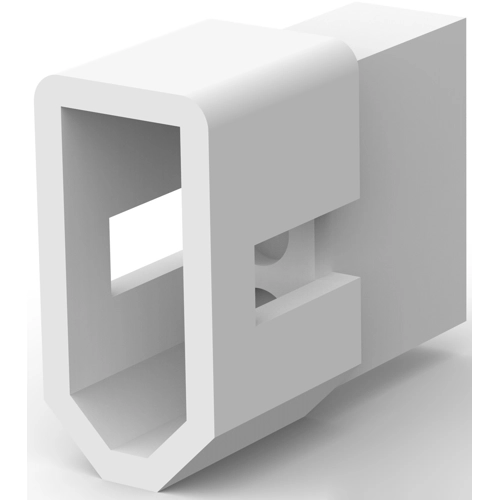

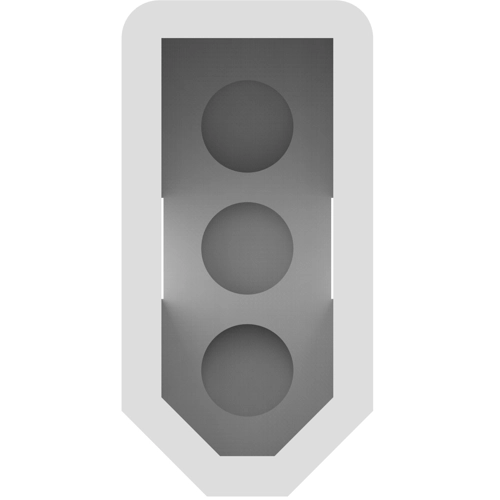

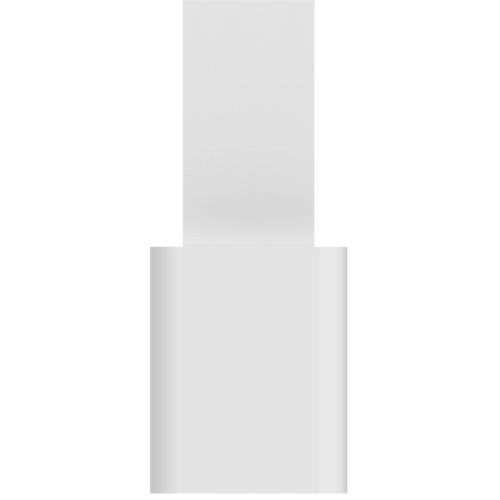

Plug housing, 3 pole, pitch 3.68 mm, straight, natural, 770331-1
Order No.: 34P6758
EAN: 4099889912982
MPN:
770331-1
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3094 €
10 pcs.
0.2916 €
25 pcs.
0.2713 €
50 pcs.
0.2475 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 770331-1, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.68 mm
- Row-to-Row Spacing: 3.68 mm [0.145 in]
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Colour | natural | |
| Number of rows | 1 | |
| Grid | 3.68 mm | |
| Contact type | socket/pin | |
| Version | plug housing | |
| Pin number | 3 pole | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Rated current | 13 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
