770278-1 | AMP

Plug housing, 1 pole, pitch 3.68 mm, straight, natural, 770278-1

Order No.: 34P6741
EAN: 4099889912814
MPN:
770278-1

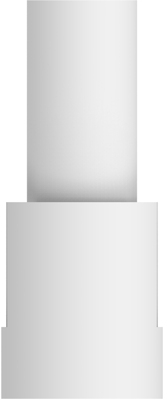

770278-1 AMP PCB Connection Systems Image 1

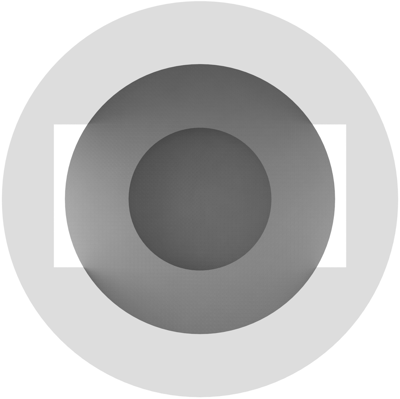

770278-1 AMP PCB Connection Systems Image 2

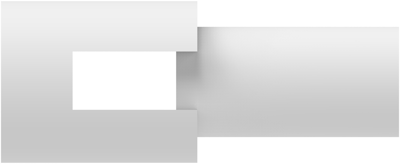

770278-1 AMP PCB Connection Systems Image 3

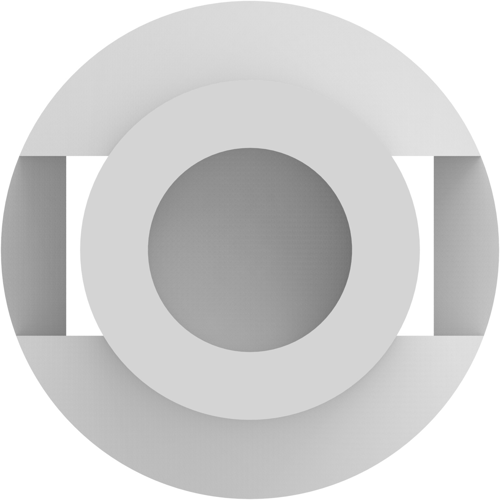

770278-1 AMP PCB Connection Systems Image 4

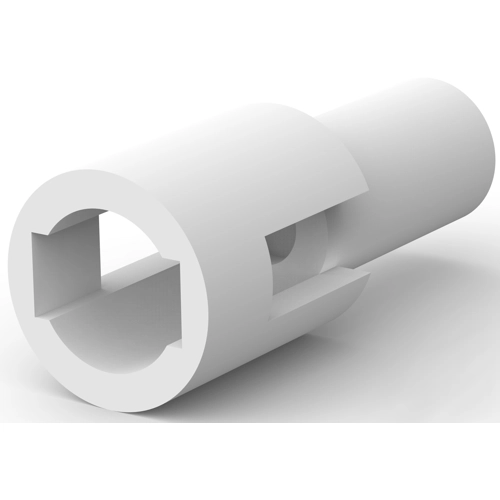

770278-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 4,700 pcs. - if ordered today
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3213 €
10 pcs.
0.2963 €
50 pcs.
0.2594 €
100 pcs.
0.2344 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770278-1, AMP

Wire-to-Wire, Wire & Cable, 1 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 1
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 3.68 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Orientation straight
Number of rows 1
Type of locking Yes
Colour natural
Connection crimp connection
Rated voltage 250 V
Contact type socket/pin
Grid 3.68 mm
Rated current 7 A
Pin number 1 pole
Version plug housing
Additional parts unequipped
Logistics
Property Value
Customs tariff number 85389091
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
