770264-1 | AMP

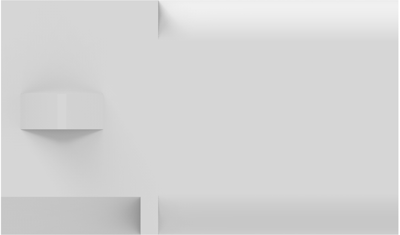

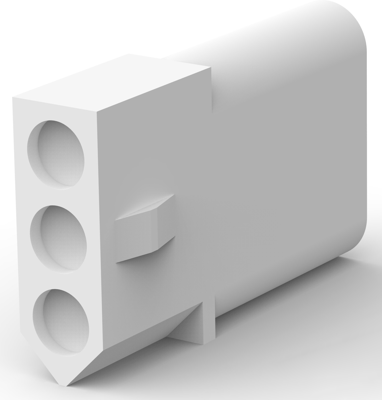

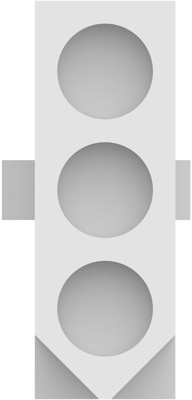

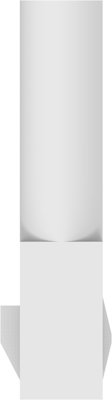

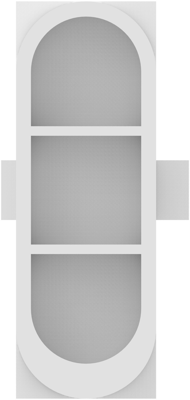

Socket housing, 3 pole, pitch 5.03 mm, straight, natural, 770264-1
Order No.: 34P6766
EAN: 4099889913064
MPN:
770264-1
Unit Price (€ / pc.)
0.2380 € *
Available in 5 Days: 6,009 pcs. - if ordered today
PCB Connection System, 770264-1, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.03 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.03 mm | |
| Contact type | socket/pin | |
| Additional parts | unequipped | |
| Colour | natural | |
| Rated current | 13 A | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Version | socket housing | |
| Type of locking | Yes | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
