770097-1 | AMP

Connector, 12 pole, pitch 5.03 mm, straight, natural, 770097-1

Order No.: 72P1392
EAN: 4099891739478
MPN:
770097-1

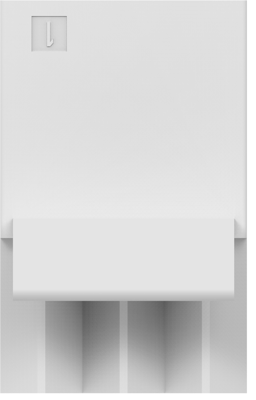

770097-1 AMP PCB Connection Systems Image 1

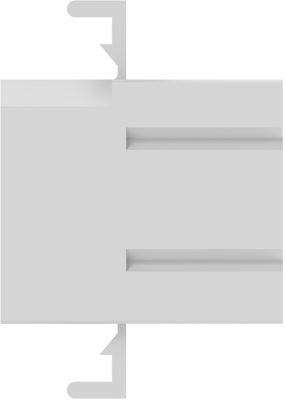

770097-1 AMP PCB Connection Systems Image 2

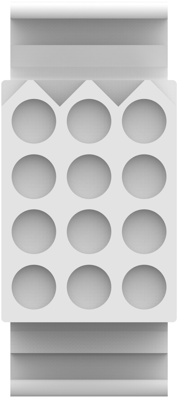

770097-1 AMP PCB Connection Systems Image 3

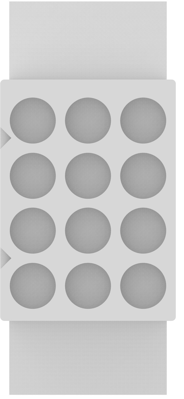

770097-1 AMP PCB Connection Systems Image 4

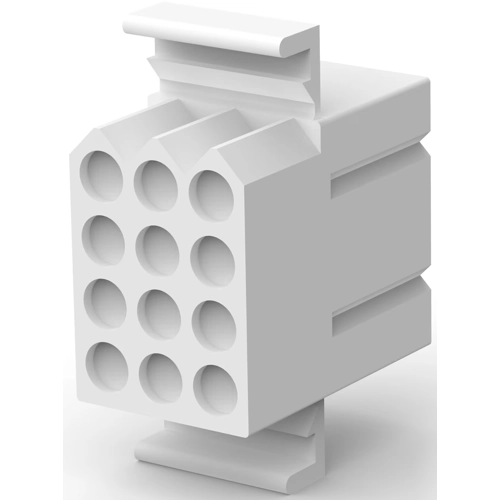

770097-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available in 5 Days: 1,054 pcs. - if ordered today
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
250 pcs.
0.8568 €
700 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

Power key connector, 770097-1, AMP

The 770097-1 is a power key connector for power circuits of home appliances, especially targeting gas appliances. With a clear clicking sound, contact insertion can be made easy. The double lock plate provides for complete loading of contacts. Locking levers are surrounded by walls, which protect levers and prevent tangling with wires. This connector is designed to release bubbles created by the process of potting, housing lances also help prevent tangling of wired contacts.

Features

  • Compact design with 19.4 mm mated height
  • Power circuit connector with 5.0 mm contact centerline
Technical specifications
Colour natural
Type of locking Yes
Rated current 13 A
Grid 5.03 mm
Pin number 12 pole
Version connector
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 250 V
Number of rows 4
Logistics
Country of origin US
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
