770095-1 | AMP

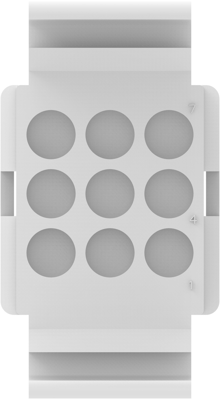

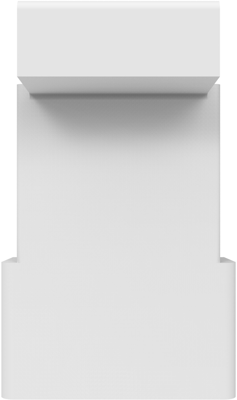

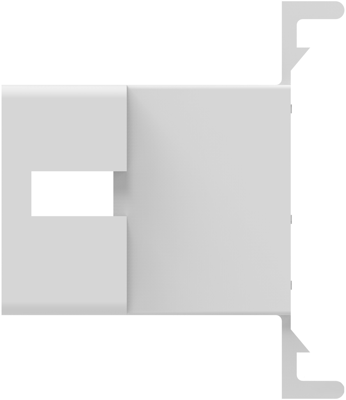

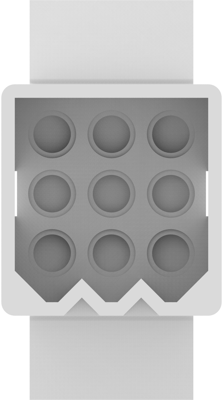

Plug housing, 9 pole, pitch 5.03 mm, straight, natural, 770095-1
Order No.: 34P6810
EAN: 4099889913484
MPN:
770095-1
Unit Price (€ / pc.)
1.2376 € *
Available in 5 Days: 6,154 pcs. - if ordered today
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1424 €
25 pcs.
1.0710 €
50 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 770095-1, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.03 mm
- Row-to-Row Spacing: 5.03 mm [0.198 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | natural | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Pin number | 9 pole | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Grid | 5.03 mm | |
| Version | plug housing | |
| Number of rows | 3 | |
| Contact type | socket/pin | |
| Rated current | 13 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
