770093-1 | AMP

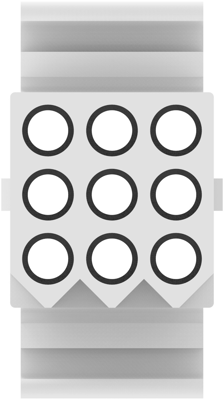

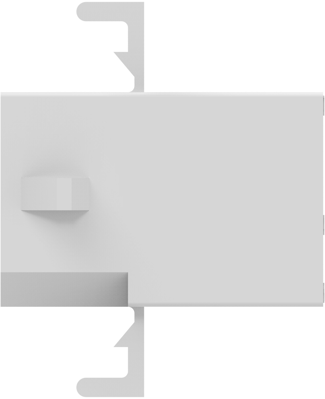

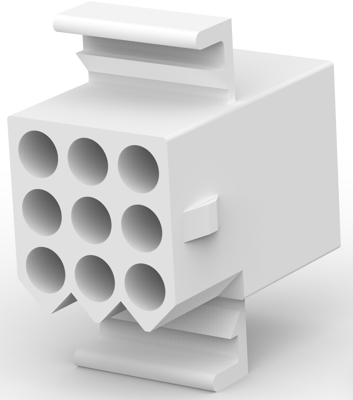

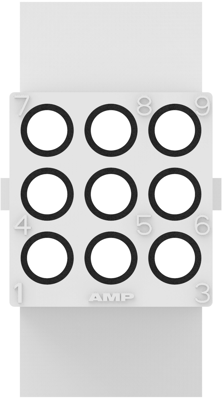

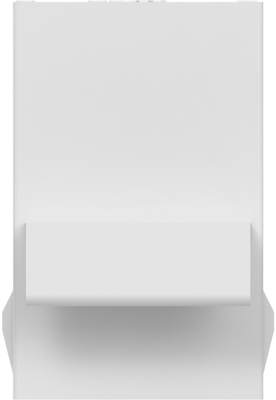

Socket housing, 9 pole, pitch 5.03 mm, straight, natural, 770093-1
Order No.: 34P6813
EAN: 4099889913514
MPN:
770093-1
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 770093-1, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.03 mm
- Row-to-Row Spacing: 5.03 mm [0.198 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Rated current | 13 A | |
| Grid | 5.03 mm | |
| Pin number | 9 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 250 V | |
| Number of rows | 3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
