770086-1 | AMP

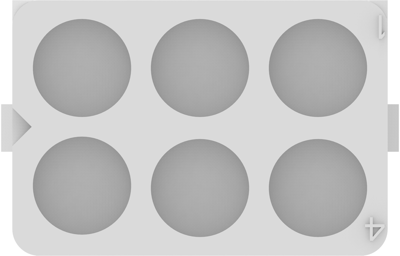

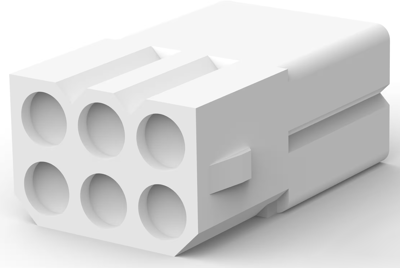

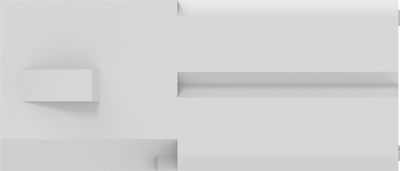

Socket housing, 6 pole, pitch 5.03 mm, straight, natural, 770086-1
Order No.: 34P6802
EAN: 4099889913415
MPN:
770086-1
Unit Price (€ / pc.)
0.1916 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Connection System, 770086-1, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.03 mm
- Row-to-Row Spacing: 5.03 mm [0.198 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 13 A | |
| Version | socket housing | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Additional parts | unequipped | |
| Grid | 5.03 mm | |
| Pin number | 6 pole | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
