770065-1 | AMP

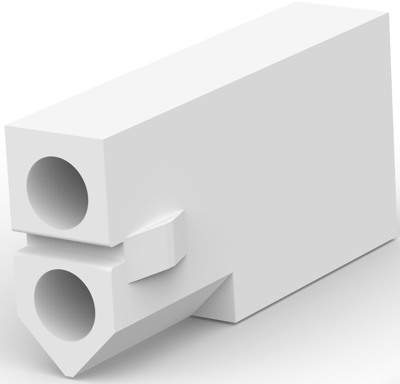

Socket housing, 2 pole, pitch 6.3 mm, straight, natural, 770065-1
Order No.: 34P6754
EAN: 4099889912944
MPN:
770065-1
Unit Price (€ / pc.)
0.3094 € *
Available in 5 Days: 49,640 pcs. - if ordered today
PCB Connection System, 770065-1, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.3 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | natural | |
| Additional parts | unequipped | |
| Pin number | 2 pole | |
| Contact type | socket/pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Version | socket housing | |
| Rated current | 13 A | |
| Number of rows | 1 | |
| Grid | 6.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
