770051-1 | AMP

Socket housing, 6 pole, pitch 6.35 mm, straight, natural, 770051-1

Order No.: 35P5225
EAN: 4099889937435
MPN:
770051-1

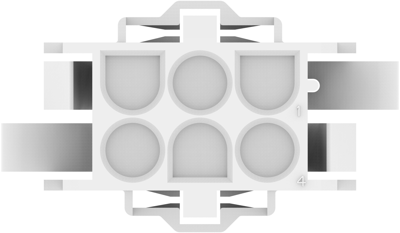

770051-1 AMP PCB Connection Systems Image 1

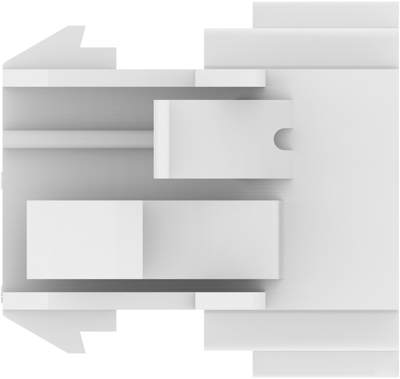

770051-1 AMP PCB Connection Systems Image 2

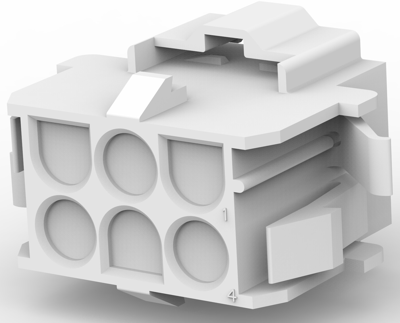

770051-1 AMP PCB Connection Systems Image 3

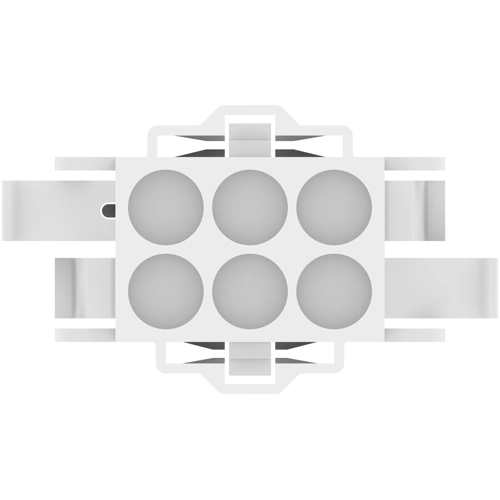

770051-1 AMP PCB Connection Systems Image 4
770051-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Available in 5 Days: 1,356 pcs. - if ordered today
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770051-1, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon GF
  • Housing Color: natural
  • Number of positions: 6
  • Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour natural
Type of locking Yes
Rated current 19 A
Grid 6.35 mm
Pin number 6 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
