770046-1 | AMP

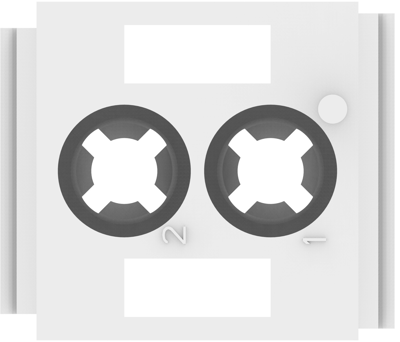

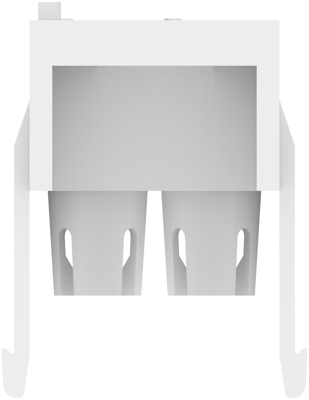

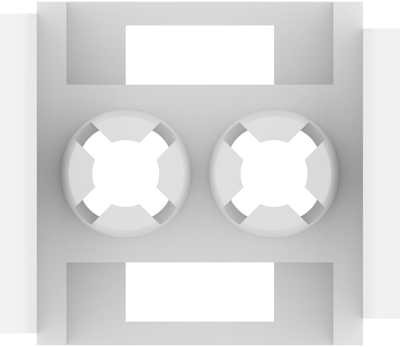

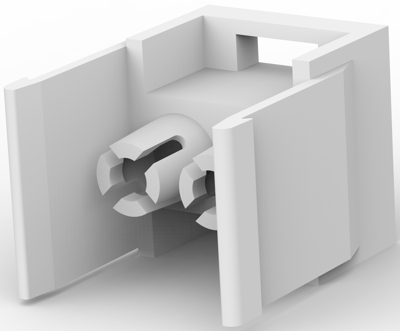

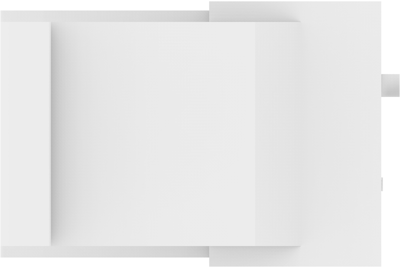

Socket housing, 2 pole, pitch 6.35 mm, straight, natural, 770046-1
Unit Price (€ / pc.)
0.4522 € *
Available in 5 Days: 3,795 pcs. - if ordered today
PCB Connection System, 770046-1, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon GF
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Pin number | 2 pole | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Contact type | socket/pin | |
| Grid | 6.35 mm | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 19 A | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
