770043-1 | AMP

Plug housing, 15 pole, pitch 6.35 mm, straight, white, 770043-1

Order No.: 35P5242
EAN: 4099889937589
MPN:
770043-1

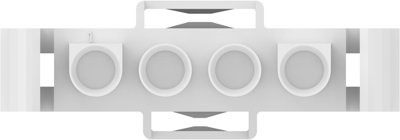

770043-1 AMP PCB Connection Systems Image 1

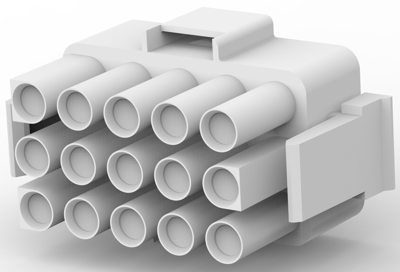

770043-1 AMP PCB Connection Systems Image 2

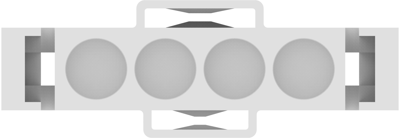

770043-1 AMP PCB Connection Systems Image 3

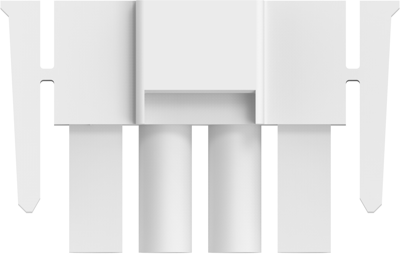

770043-1 AMP PCB Connection Systems Image 4

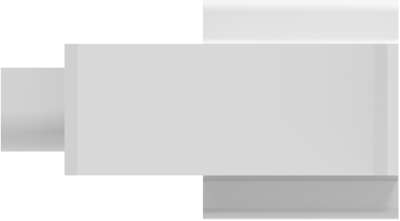

770043-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
2,474.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
2700 pcs.
0.9163 €

PCB Connection System, 770043-1, AMP

Wire-to-Wire, Wire & Cable, 15 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 15
  • Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour white
Type of locking Yes
Rated current 19 A
Grid 6.35 mm
Pin number 15 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Country of origin GB
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
