770041-1 | AMP

Plug housing, 12 pole, pitch 6.35 mm, straight, natural, 770041-1

Order No.: 35P5236
EAN: 4099889937527
MPN:
770041-1

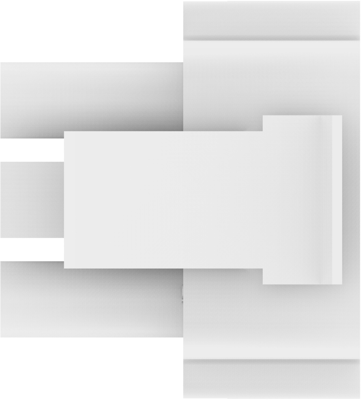

770041-1 AMP PCB Connection Systems Image 1

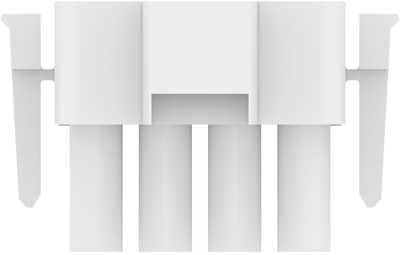

770041-1 AMP PCB Connection Systems Image 2

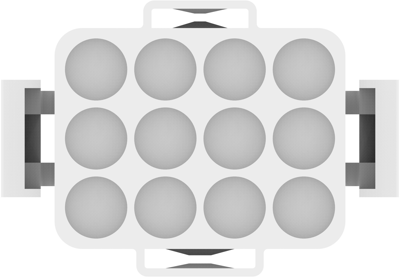

770041-1 AMP PCB Connection Systems Image 3

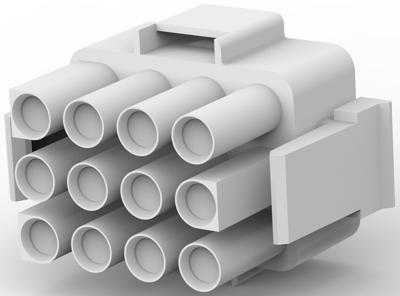

770041-1 AMP PCB Connection Systems Image 4
770041-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9520 € *
Available in 5 Days: 1,866 pcs. - if ordered today
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9520 €
10 pcs.
0.8568 €
50 pcs.
0.7616 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770041-1, AMP

Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon GF
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour natural
Type of locking Yes
Rated current 19 A
Grid 6.35 mm
Pin number 12 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
