770030-1 | AMP

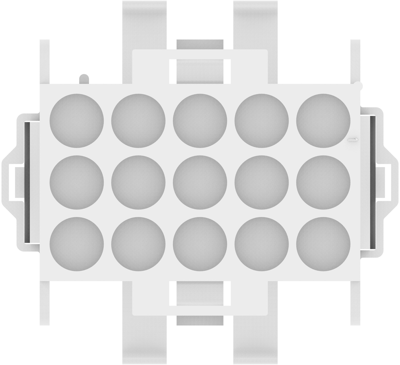

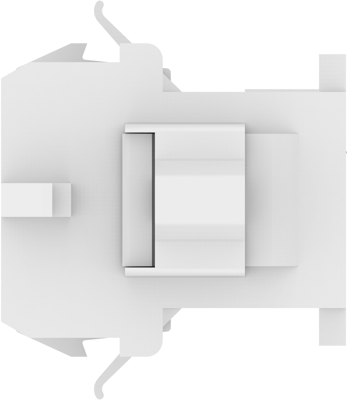

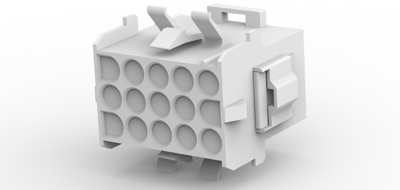

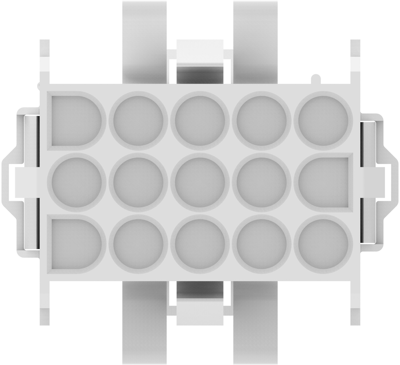

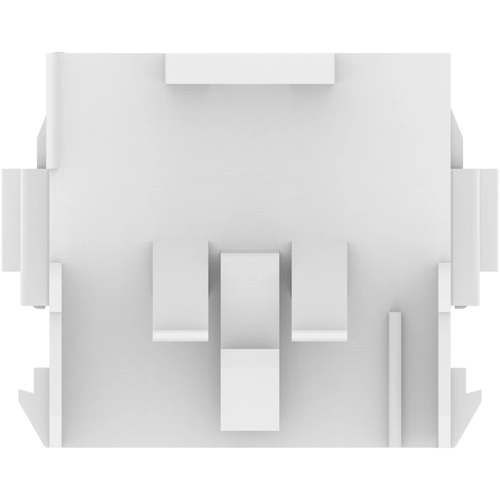

Socket housing, 15 pole, pitch 6.35 mm, straight, white, 770030-1
Unit Price (€ / pc.)
3.2249 € *
Available in 5 Days: 14,054 pcs. - if ordered today
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.9988 €
25 pcs.
2.7965 €
50 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 770030-1, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 15 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon GF
- Housing Color: white
- Number of positions: 15
- Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 31 A | |
| Rated voltage | 600 V | |
| Version | socket housing | |
| Number of rows | 3 | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Pin number | 15 pole | |
| Grid | 6.35 mm | |
| Type of locking | Yes | |
| Contact type | socket/pin | |
| Colour | white | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
