770022-1 | AMP

Plug housing, 12 pole, pitch 6.35 mm, straight, white, 770022-1

Order No.: 35P5238
EAN: 4099889937541
MPN:
770022-1

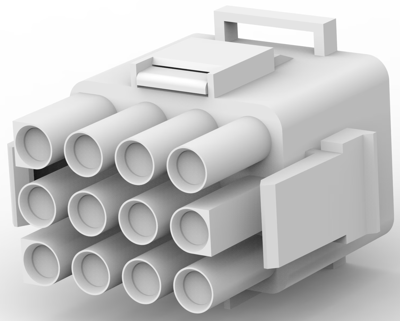

770022-1 AMP PCB Connection Systems Image 1

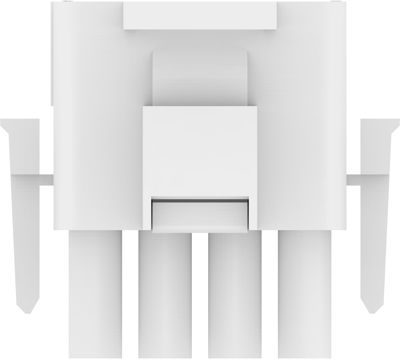

770022-1 AMP PCB Connection Systems Image 2

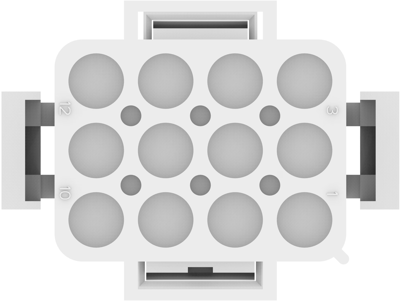

770022-1 AMP PCB Connection Systems Image 3

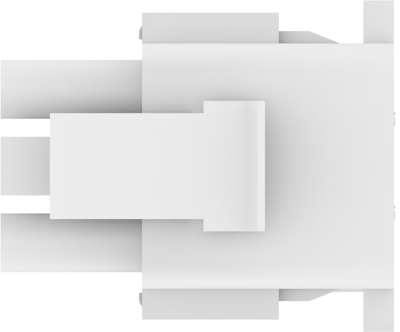

770022-1 AMP PCB Connection Systems Image 4
770022-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3800 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1658 €
50 pcs.
1.9516 €
100 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770022-1, AMP

Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon GF
  • Housing Color: white
  • Number of positions: 12
  • Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour white
Type of locking Yes
Rated current 31 A
Grid 6.35 mm
Pin number 12 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 3
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
