770019-1 | AMP

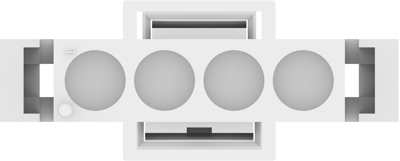

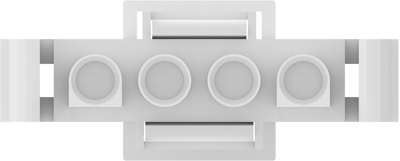

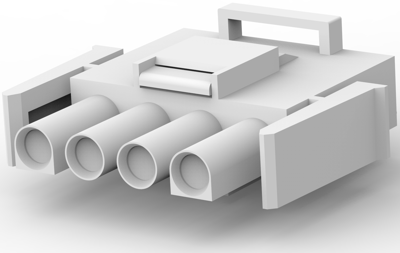

Plug housing, 4 pole, pitch 6.35 mm, straight, white, 770019-1

Order No.: 35P5223
EAN: 4099889937411
MPN:
770019-1
770019-1 AMP PCB Connection Systems Image 1
770019-1 AMP PCB Connection Systems Image 2
770019-1 AMP PCB Connection Systems Image 3
770019-1 AMP PCB Connection Systems Image 4
770019-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available in 5 Days: 186 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6422 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770019-1, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon GF
  • Housing Color: white
  • Number of positions: 4
  • Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection crimp connection
Number of rows 1
Colour white
Contact type socket/pin
Additional parts unequipped
Rated current 31 A
Rated voltage 600 V
Pin number 4 pole
Orientation straight
Version plug housing
Type of locking Yes
Grid 6.35 mm
Logistics
Customs tariff number 85472000
Country of origin CZ
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
