770017-1 | AMP

Plug housing, 2 pole, pitch 6.35 mm, straight, white, 770017-1

Order No.: 35P5212
EAN: 4099889937312
MPN:
770017-1

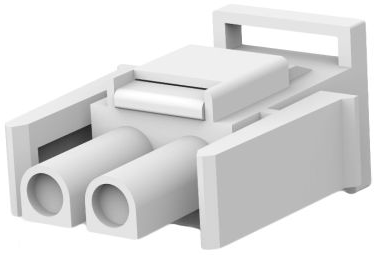

770017-1 AMP PCB Connection Systems Image 1

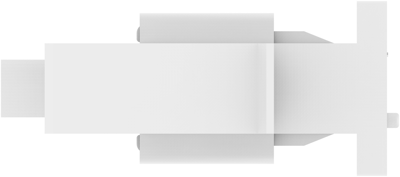

770017-1 AMP PCB Connection Systems Image 2

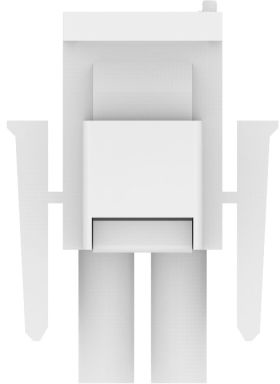

770017-1 AMP PCB Connection Systems Image 3

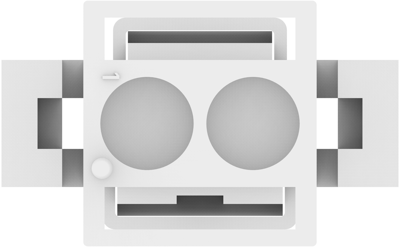

770017-1 AMP PCB Connection Systems Image 4

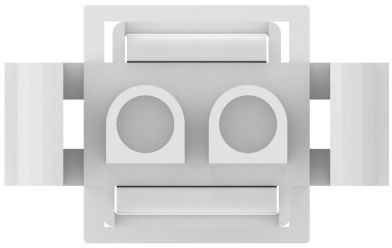

770017-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available: 175 pcs.
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9758 €
10 pcs.
0.9044 €
25 pcs.
0.8449 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770017-1, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon GF
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -55 – 120 °C [-67 – 248 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type socket/pin
Version plug housing
Rated current 31 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour white
Pin number 2 pole
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
