767006-4 | AMP

Pin header, 152 pole, pitch 0.64 mm, straight, black, 767006-4

Order No.: 72P1374
EAN: 4099891739393
MPN:
767006-4

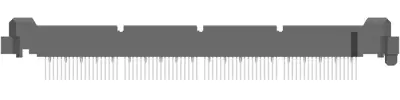

767006-4 AMP PCB Connection Systems Image 1

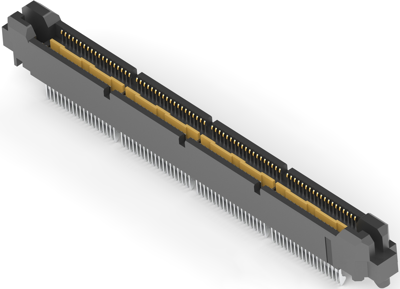

767006-4 AMP PCB Connection Systems Image 2

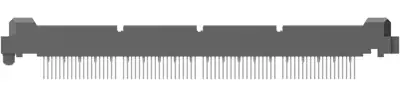

767006-4 AMP PCB Connection Systems Image 3

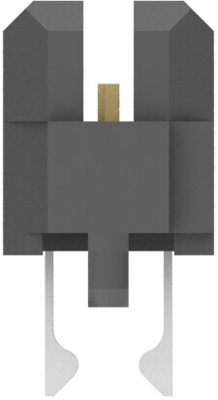

767006-4 AMP PCB Connection Systems Image 4
767006-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
81.8363 € *
Available in 5 Days: 8 pcs. - if ordered today
Total Price:
654.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
8 pcs.
81.8363 €

PCB header, 767006-4, AMP

The 767006-4 is a right angled pcb mount header that is based on the microstrip concept of two rows of signal contact divided by a center power ground plane. This product is motherboard and daughtercard compatible and includes design for cable-to-board applications.

Technical specifications
Colour black
contact surface gold-plated
Rated current 11.5 A
Grid 0.64 mm
Connection plating tin-lead
Pin number 152 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 30 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform No
