7-215464-8 | AMP

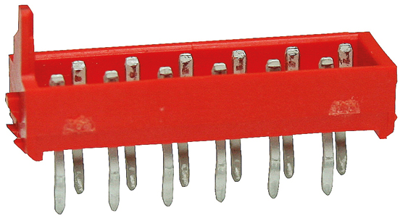

Pin header, 8 pole, pitch 1.27 mm, straight, red, 7-215464-8
Unit Price (€ / pc.)
1.3566 € *
Available: 250 pcs.
Available in 5 Days: 3,750 pcs. - if ordered today
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3566 €
10 pcs.
1.2614 €
25 pcs.
1.1662 €
50 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Sub-D PCB male connectors, male, straight, type ..-0215464.
For PCB mounting.

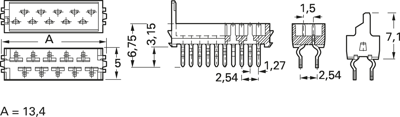

Technical attributes (type, number of poles, dimension A): 7-0215464-8, 8-pole, A 13.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1 A | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Version | pin header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 1.27 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | pin | |
| Colour | red | |
| Pin number | 8 pole | |
| Connection | PCB connection | |
| Rated voltage | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
