7-215460-4 | AMP

Socket header, 4 pole, pitch 1.27 mm, angled, red, 7-215460-4

Order No.: 58F420
EAN: 4099891002497
MPN:
7-215460-4
7-0215460-4
Series: Micro-MaTch

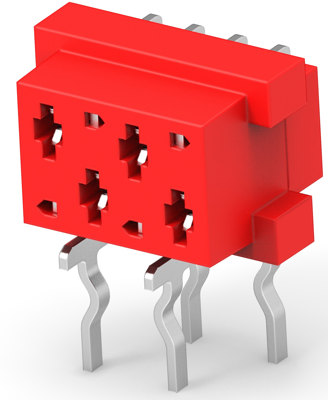

7-215460-4 AMP PCB Connection Systems Image 1

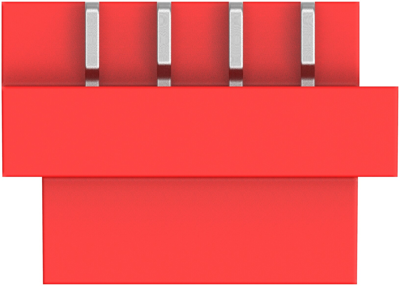

7-215460-4 AMP PCB Connection Systems Image 2

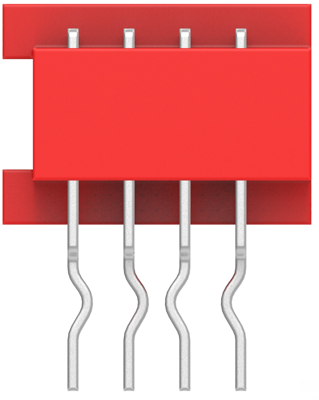

7-215460-4 AMP PCB Connection Systems Image 3

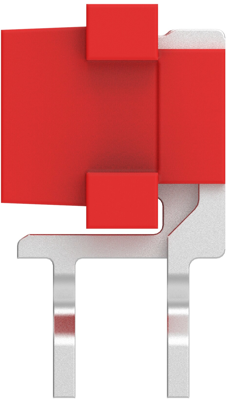

7-215460-4 AMP PCB Connection Systems Image 4

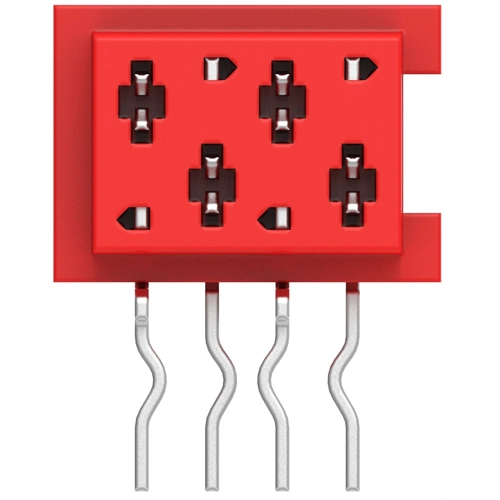

7-215460-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available in 5 Days: 2,500 pcs. - if ordered today
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.2019 €
50 pcs.
1.0829 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Sub-D PCB female connectors, angled, type ..-0215460.

For PCB mounting.

Technical attributes (type, number of poles, dimension B): 7-0215460-4. 4-pole, B 7.1 mm

Technical specifications
Number of rows 2
Rated voltage 100 V
Contact type socket
Type of locking Yes
Connection PCB connection
contact surface tin-plated
Pin number 4 pole
Grid 1.27 mm
Connection plating tin-plated
Orientation angled
Additional parts equipped
Colour red
Version socket header
Rated current 1.5 A
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
