7-215083-6 | AMP
Pin header, 6 pole, pitch 1.27 mm, straight, red, 7-215083-6
Unit Price (€ / pc.)
0.8211 € *
Available: 910 pcs.
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
100 pcs.
0.7140 €
250 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Male-on-wire connectors.

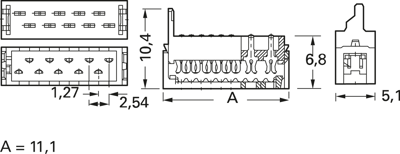

Technical attributes (type, number of poles, dimension A): 7-0215083-6, 6-pole, A 11.1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Pin number | 6 pole | |
| Colour | red | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 1.5 A | |
| Version | pin header | |
| Connection | IDC connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 100 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
