7-188275-6 | AMP

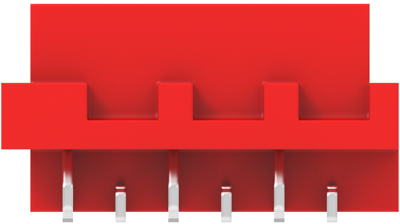

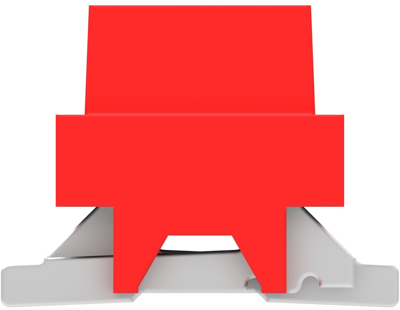

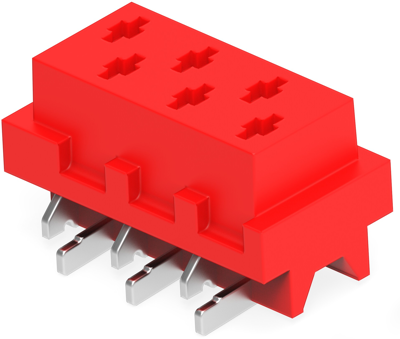

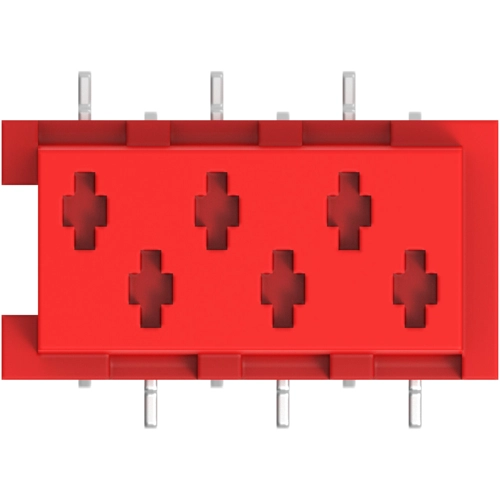

Socket header, 6 pole, pitch 1.27 mm, straight, red, 7-188275-6

Order No.: 58F702
EAN: 4099891004286
MPN:
7-188275-6
7-0188275-6
Series: Micro-MaTch
7-188275-6 AMP PCB Connection Systems Image 1
7-188275-6 AMP PCB Connection Systems Image 2
7-188275-6 AMP PCB Connection Systems Image 3
7-188275-6 AMP PCB Connection Systems Image 4
7-188275-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Available: 2,197 pcs.
Available in 5 Days: 6,300 pcs. - if ordered today
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2852 €
10 pcs.
1.1900 €
25 pcs.
1.1067 €
50 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Federleisten gerade für SMD-Montage.

Verpackung mit Ansaughaube für pick and place, Reflowlöten geeigent; Tabellenangaben: Typ, Polzahl, Maß B.

Type: 7-0188275-6, 6-polig, B 9,7 mm

Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket header
Rated current 1.5 A
Rated voltage 100 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour red
Pin number 6 pole
Connection SMD
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
