7-188275-4 | AMP

Socket header, 4 pole, pitch 1.27 mm, straight, red, 7-188275-4

Order No.: 58F700
EAN: 4099891004279
MPN:
7-188275-4
7-0188275-4
Series: Micro-MaTch

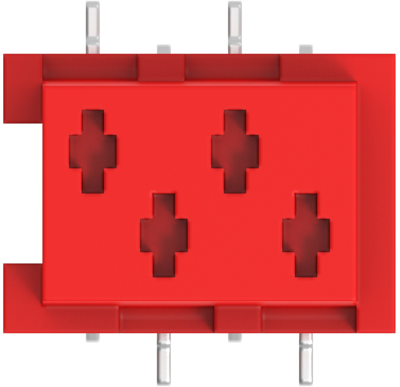

7-188275-4 AMP PCB Connection Systems Image 1

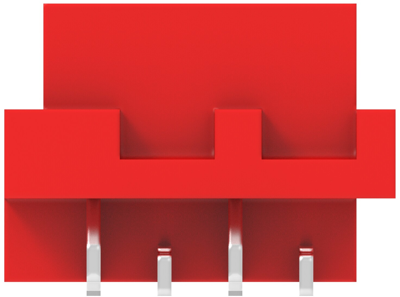

7-188275-4 AMP PCB Connection Systems Image 2

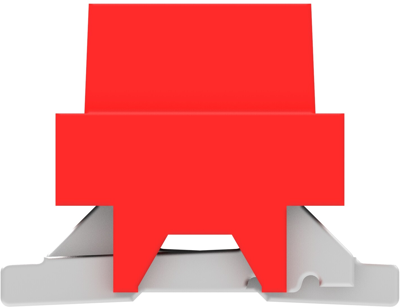

7-188275-4 AMP PCB Connection Systems Image 3

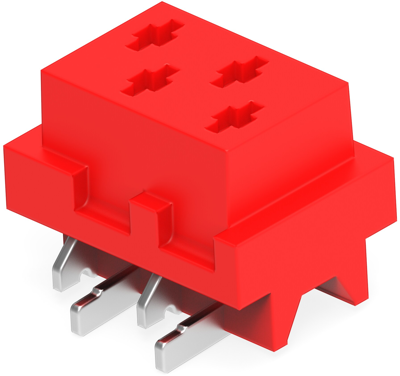

7-188275-4 AMP PCB Connection Systems Image 4

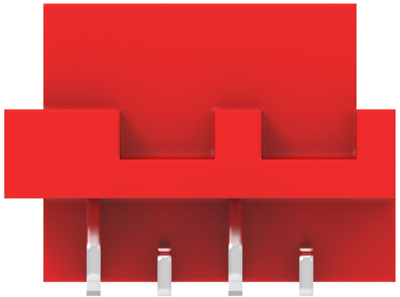

7-188275-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0234 € *
Available: 2,576 pcs.
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0234 €
10 pcs.
0.9520 €
25 pcs.
0.8806 €
50 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Federleisten gerade für SMD-Montage.

Verpackung mit Ansaughaube für pick and place, Reflowlöten geeigent; Tabellenangaben: Typ, Polzahl, Maß B.

Type: 7-0188275-4, 4-polig, B 7,1 mm

Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket header
Rated current 1.5 A
Rated voltage 100 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour red
Pin number 4 pole
Connection SMD
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
