650947-5 | AMP

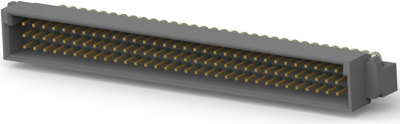

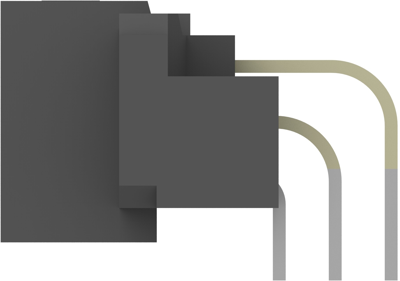

Pin header, 96 pole, pitch 2.54 mm, angled, gray, 650947-5
Order No.: 36P7579
EAN: 4099889948820
MPN:
650947-5
Unit Price (€ / pc.)
6.3189 € *
Available in 5 Days: 532 pcs. - if ordered today
Total Price:
6.32 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3189 €
10 pcs.
5.8667 €
25 pcs.
5.4740 €
50 pcs.
4.9742 €
*incl. VAT plus shipping costs
Subject to prior sale
Standard Edge Connectors, 650947-5, AMP
Connector System: Board-to-Board, Connector & Housing Type: Plug, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 96, Number of Rows: 3, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Contact Current Rating (Max): 3 A, Connector Mounting Type: Board Mount, Centerline (Pitch): 2.54 mm, Housing Color: Gray, Housing Material: Glass Filled Polyester, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Colour | gray | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Connection | solder connection | |
| Pin number | 96 pole | |
| Version | pin header | |
| Number of rows | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | No |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
