650473-5 | AMP

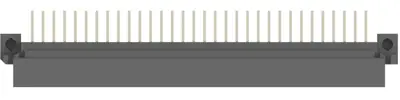

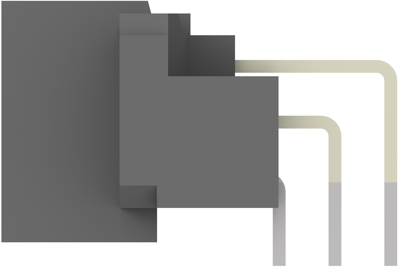

Pin header, 96 pole, pitch 2.54 mm, angled, gray, 650473-5
Order No.: 36P7578
EAN: 4099889948813
MPN:
650473-5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.2947 € *
Available in 12 Days: 2,050 pcs. - if ordered today
Total Price:
7.29 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2947 €
5 pcs.
6.9139 €
10 pcs.
6.4736 €
25 pcs.
5.9024 €
*incl. VAT plus shipping costs
Subject to prior sale
Standard Edge Connectors, 650473-5, AMP
Connector System: Board-to-Board, Connector & Housing Type: Plug, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 96, Number of Rows: 3, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Connector Mounting Type: Board Mount, Centerline (Pitch): 2.54 mm, Housing Color: Gray, Housing Material: Glass Filled Polyester, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 96 pole | |
| Grid | 2.54 mm | |
| Connection | solder connection | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Number of rows | 3 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
