647845-4 | AMP

Socket housing, 2 pole, pitch 19.05 mm, straight, gray, 647845-4

Order No.: 37P1832
EAN: 4099889953626
MPN:
647845-4
Series: POWER

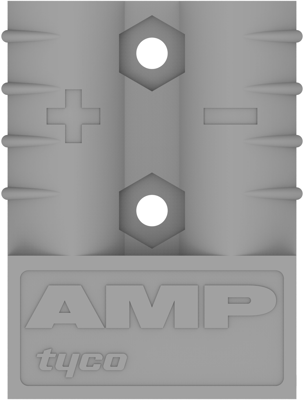

647845-4 AMP PCB Connection Systems Image 1

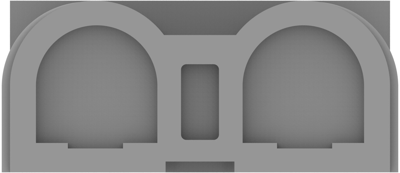

647845-4 AMP PCB Connection Systems Image 2

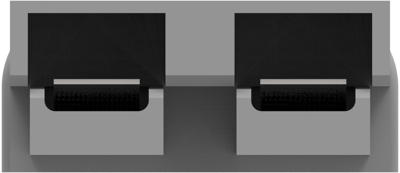

647845-4 AMP PCB Connection Systems Image 3

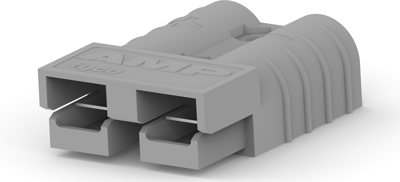

647845-4 AMP PCB Connection Systems Image 4

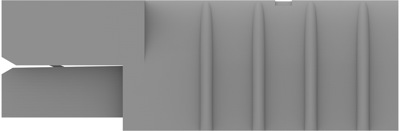

647845-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
21,658.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
28000 pcs.
0.7735 €

PCB Connection System, 647845-4, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Polycarbonate
  • Housing Color: gray
  • Number of positions: 2
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Centerline (Pitch): 19.05 mm
  • Sealable: No
Technical specifications
Filter Property Value
Pin number 2 pole
Contact type socket/pin
Type of locking Yes
Colour gray
Rated current 50 A
Rated voltage 600 V
Connection crimp connection
Grid 19.05 mm
Orientation straight
Version socket housing
Additional parts unequipped
Number of rows 1
Logistics
Property Value
Customs tariff number 85472000
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
