6450849-9 | AMP

Pin header, 51 pole, pitch 2.54 mm, angled, black, 6450849-9

Order No.: 72P0710
EAN: 4099891738549
MPN:
6450849-9
Series: MULTI-BEAM XLE

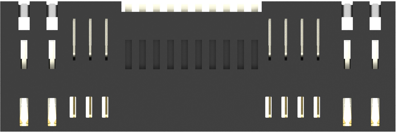

6450849-9 AMP PCB Connection Systems Image 1

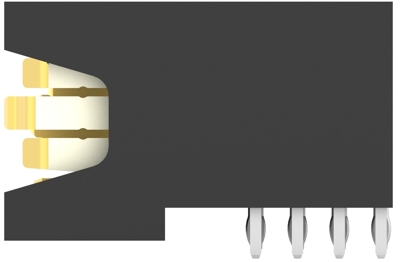

6450849-9 AMP PCB Connection Systems Image 2

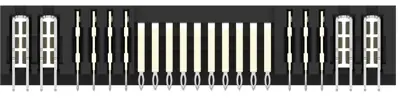

6450849-9 AMP PCB Connection Systems Image 3

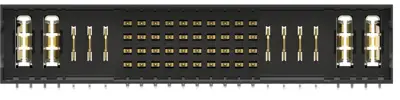

6450849-9 AMP PCB Connection Systems Image 4

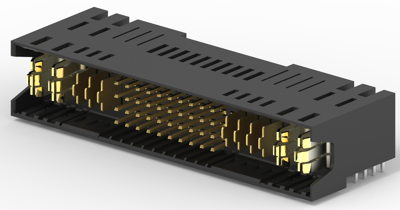

6450849-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
17.1122 € *
Available in 5 Days: 649 pcs. - if ordered today
Total Price:
256.68 € *
Price list
Quantity
Price per unit*
15 pcs.
17.1122 €
30 pcs.
16.8028 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 6450849-9, AMP

Plug, Header, 51 position, Board-to-Board, Printed circuit board, Right angle, Tin, Board mount, Power & Signal.

Technical specifications
Colour black
contact surface gold-plated
Rated current 50 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 51 pole
Version pin header
Additional parts equipped
Orientation angled
Connection press-fit
Contact type pin
Rated voltage 60 V
Number of rows 4
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
