6450833-7 | AMP

Pin header, 7 pole, pitch 7.62 mm, angled, black, 6450833-7

Order No.: 72P0708
EAN: 4099891738532
MPN:
6450833-7
Series: MULTI-BEAM XLE

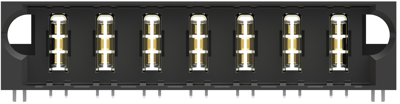

6450833-7 AMP PCB Connection Systems Image 1

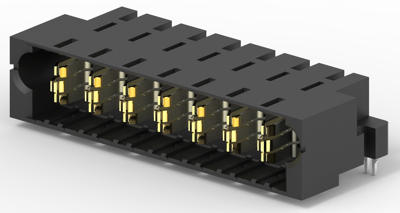

6450833-7 AMP PCB Connection Systems Image 2

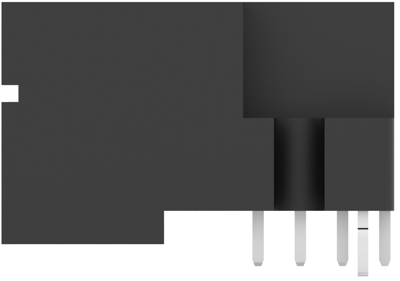

6450833-7 AMP PCB Connection Systems Image 3

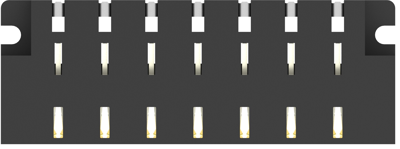

6450833-7 AMP PCB Connection Systems Image 4

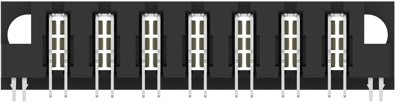

6450833-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
13.3399 € *
Available in 5 Days: 222 pcs. - if ordered today
Total Price:
13.34 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3399 €
10 pcs.
12.2689 €
50 pcs.
11.0432 €
100 pcs.
9.9365 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 6450833-7, AMP

Rectangular power connector, Connector assembly, Plug, Board-to-Board, 7 Position, 7.62 mm Centerline, Printed circuit board.

Features

  • Guide sockets reduce the overall PCB footprint
  • Vented housing allows for better heat dissipation
  • Hot-plug capable

Applications

  • Power Supplies
  • Data Storage Equipment
  • High Density Power Distribution
  • Uninterruptible Power Supplies
  • Removable Battery Packs
  • Board Stacking
Technical specifications
Colour black
contact surface gold-plated
Rated current 50 A
Grid 7.62 mm
Connection plating tin-plated
Pin number 7 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 300 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
