6450572-1 | AMP

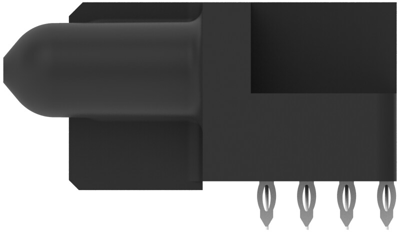

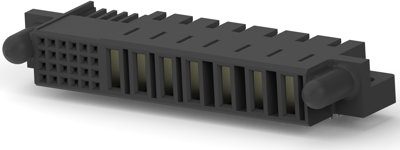

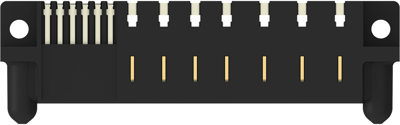

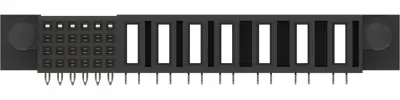

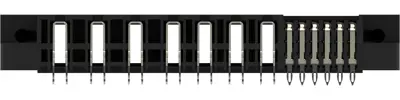

Socket header, 31 pole, pitch 2.54 mm, angled, black, 6450572-1
Unit Price (€ / pc.)
22.1340 € *
Available in 5 Days: 2,557 pcs. - if ordered today
Total Price:
22.13 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1340 €
2 pcs.
20.7060 €
5 pcs.
19.4565 €
10 pcs.
18.0880 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 6450572-1, AMP
Board-to-Board, Printed Circuit Board, Right Angle, 31 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: angled
- Number of positions: 31
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Rated current: 42 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | press-fit | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 31 pole | |
| Contact type | socket | |
| Orientation | angled | |
| Type of locking | Yes | |
| Rated voltage | 300 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 42 A | |
| Number of rows | 4 | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
