6450543-6 | AMP

Socket header, 3 pole, pitch 7.62 mm, straight, black, 6450543-6

Order No.: 37P1434
EAN: 4099889952834
MPN:
6450543-6
Series: MULTI-BEAM XL

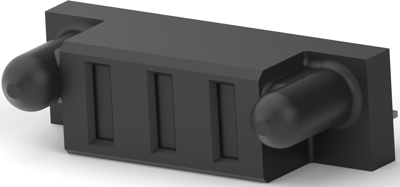

6450543-6 AMP PCB Connection Systems Image 1

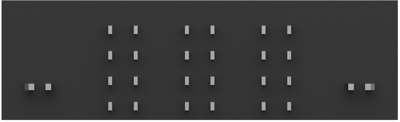

6450543-6 AMP PCB Connection Systems Image 2

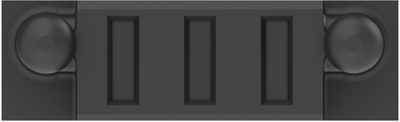

6450543-6 AMP PCB Connection Systems Image 3

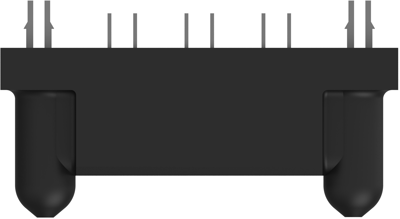

6450543-6 AMP PCB Connection Systems Image 4
6450543-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.3439 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,103.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
330 pcs.
3.3439 €

PCB Connection System, 6450543-6, AMP

Board-to-Board, Printed Circuit Board, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: High Temperature Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Rated current: 42 A
  • Centerline (Pitch): 7.62 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 42 A
Grid 7.62 mm
Connection plating tin-plated
Pin number 3 pole
Version socket header
Additional parts equipped
Orientation straight
Connection press-fit
Contact type socket
Rated voltage 300 V
Number of rows 1
Logistics
Property Value
Country of origin IN
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
