6450543-1 | AMP

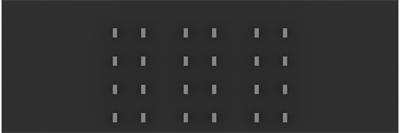

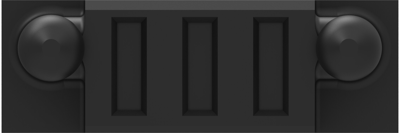

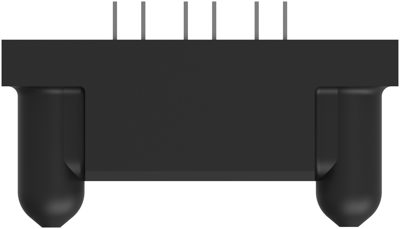

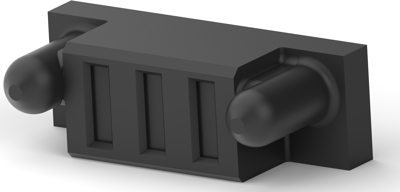

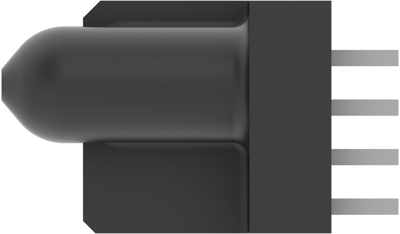

Socket header, 3 pole, pitch 6.35 mm, straight, black, 6450543-1
Unit Price (€ / pc.)
3.0226 € *
Available in 5 Days: 1,540 pcs. - if ordered today
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.7846 €
50 pcs.
2.4990 €
100 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 6450543-1, AMP
Board-to-Board, Printed Circuit Board, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: High Temperature Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Rated current: 42 A
- Centerline (Pitch): 6.35 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 42 A | |
| Grid | 6.35 mm | |
| Connection plating | tin-plated | |
| Pin number | 3 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | press-fit | |
| Contact type | socket | |
| Rated voltage | 200 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
