6450123-3 | AMP

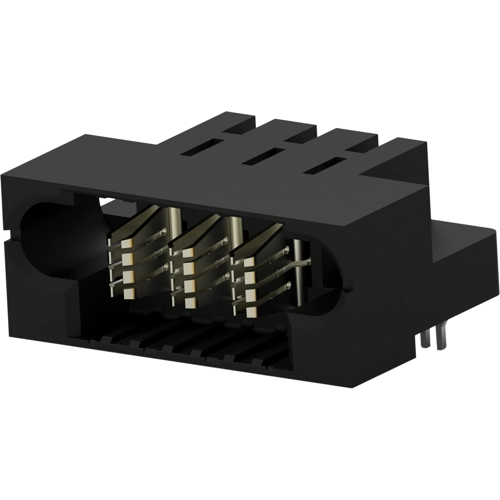

Pin header, 3 pole, pitch 7.62 mm, angled, black, 6450123-3

Order No.: 37P1394
EAN: 4099889952780
MPN:
6450123-3
Series: MULTI-BEAM XL

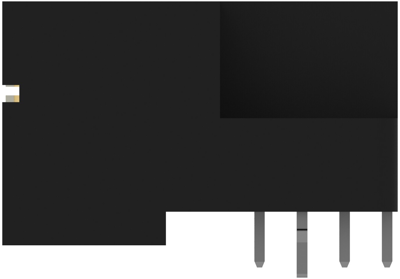

6450123-3 AMP PCB Connection Systems Image 1

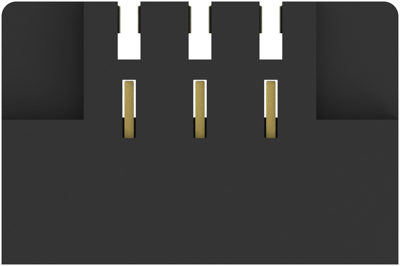

6450123-3 AMP PCB Connection Systems Image 2

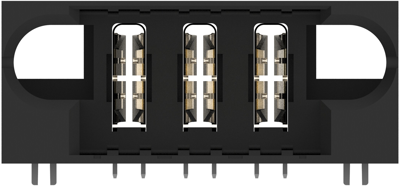

6450123-3 AMP PCB Connection Systems Image 3

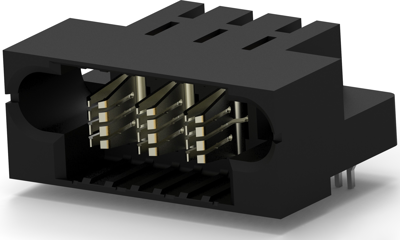

6450123-3 AMP PCB Connection Systems Image 4

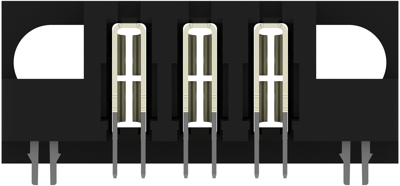

6450123-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.9976 € *
Available in 5 Days: 14,842 pcs. - if ordered today
Total Price:
6.00 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9976 €
10 pcs.
5.5216 €
50 pcs.
4.9623 €
100 pcs.
4.4744 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 6450123-3, AMP

Board-to-Board, Printed Circuit Board, Right Angle, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: High Temperature Thermoplastic
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 3
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Rated current: 42 A
  • Centerline (Pitch): 7.62 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 42 A
Grid 7.62 mm
Connection plating tin-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 300 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
