644753-8 | AMP

Pin header, 8 pole, pitch 3.96 mm, straight, natural, 644753-8

Order No.: 35P1070
EAN: 4099889922066
MPN:
644753-8
Series: MTA-156

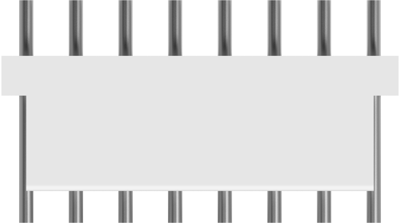

644753-8 AMP PCB Connection Systems Image 1

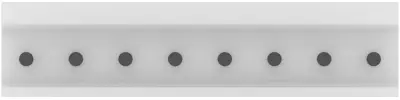

644753-8 AMP PCB Connection Systems Image 2

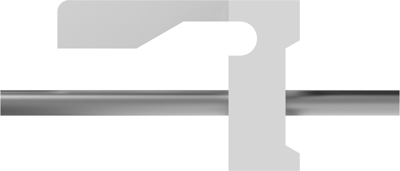

644753-8 AMP PCB Connection Systems Image 3

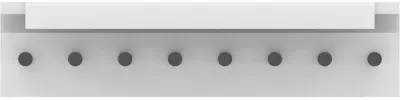

644753-8 AMP PCB Connection Systems Image 4

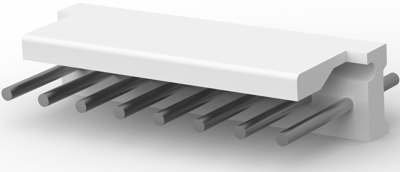

644753-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9996 € *
Available in 5 Days: 21,786 pcs. - if ordered today
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 644753-8, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic Polyester
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 7 A
Grid 3.96 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Property Value
Country of origin TW
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
