644749-3 | AMP

Pin header, 3 pole, pitch 3.96 mm, straight, natural, 644749-3

Order No.: 72P0658
EAN: 4099891738242
MPN:
644749-3
Series: MTA-156

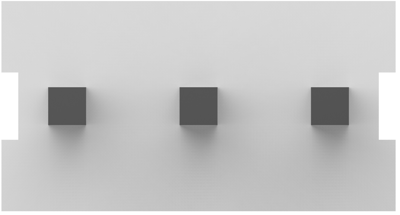

644749-3 AMP PCB Connection Systems Image 1

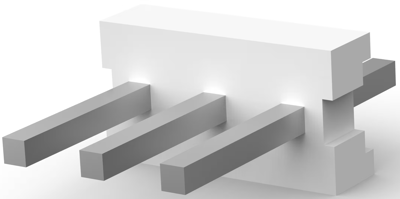

644749-3 AMP PCB Connection Systems Image 2

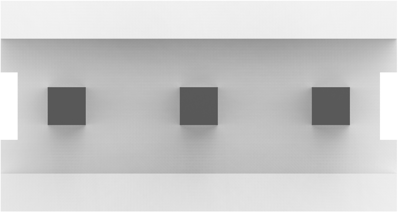

644749-3 AMP PCB Connection Systems Image 3

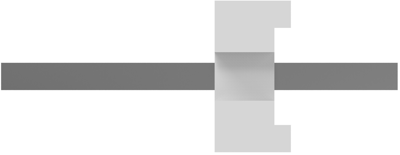

644749-3 AMP PCB Connection Systems Image 4
644749-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2713 € *
Available in 5 Days: 26,000 pcs. - if ordered today
Total Price:
542.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.2713 €

Power connector, 644749-3, AMP

Rectangular power connector, Header, Plug, Wire-to-Board, 3 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.

Technical specifications
Colour natural
Type of locking No
contact surface tin-plated
Rated current 7 A
Grid 3.96 mm
Connection plating tin-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
