644487-4 | AMP

Pin header, 4 pole, pitch 2.54 mm, straight, black, 644487-4

Order No.: 72P0654
EAN: 4099891738204
MPN:
644487-4
Series: MTA-100

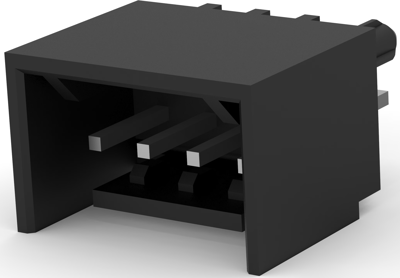

644487-4 AMP PCB Connection Systems Image 1

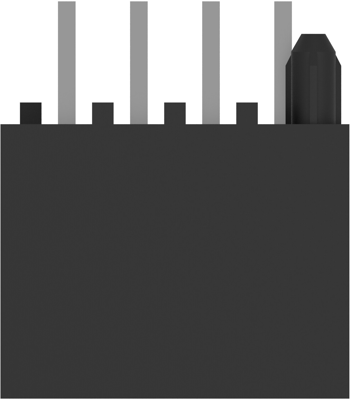

644487-4 AMP PCB Connection Systems Image 2

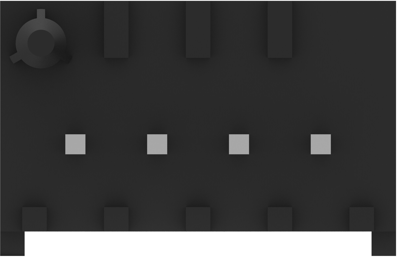

644487-4 AMP PCB Connection Systems Image 3

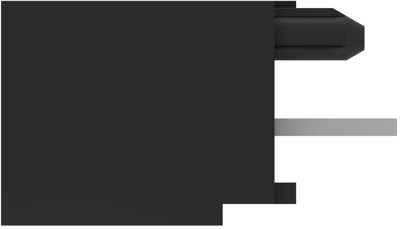

644487-4 AMP PCB Connection Systems Image 4

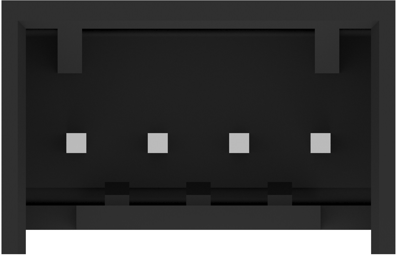

644487-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
9,079.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
3500 pcs.
2.5942 €

Header assembly, 644487-4, AMP

The 644487-4 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating gold-plated
Pin number 4 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
