644487-3 | AMP

Pin header, 3 pole, pitch 2.54 mm, straight, black, 644487-3

Order No.: 72P0653
EAN: 4099891738198
MPN:
644487-3
Series: MTA-100

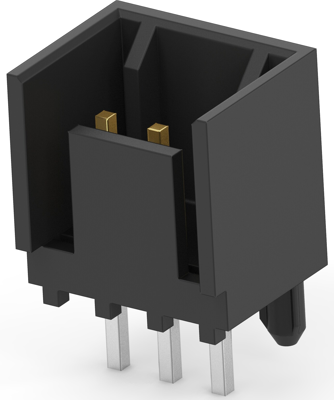

644487-3 AMP PCB Connection Systems Image 1

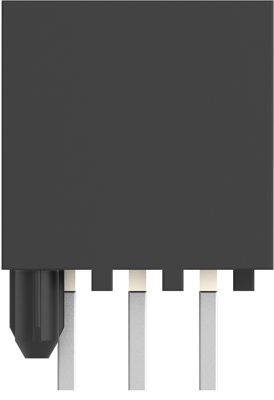

644487-3 AMP PCB Connection Systems Image 2

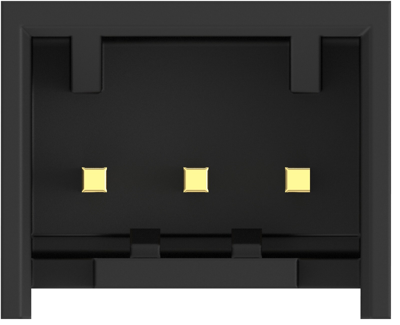

644487-3 AMP PCB Connection Systems Image 3

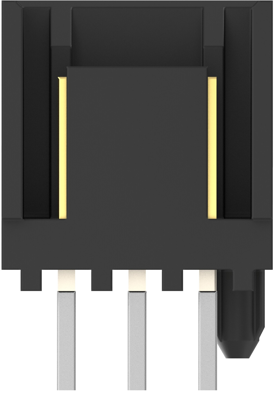

644487-3 AMP PCB Connection Systems Image 4

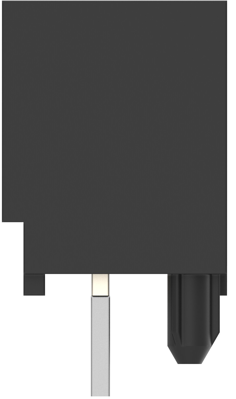

644487-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2253 € *
Available in 5 Days: 3,144 pcs. - if ordered today
Total Price:
200.28 € *
Price list
Quantity
Price per unit*
90 pcs.
2.2253 €
250 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 644487-3, AMP

The 644487-3 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating gold-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
