644180-6 | AMP

Pin header, 13 pole, pitch 2.54 mm, straight, natural, 644180-6

Order No.: 72P0651
EAN: 4099891738174
MPN:
644180-6
Series: MTA-100

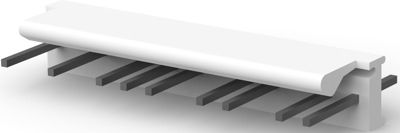

644180-6 AMP PCB Connection Systems Image 1

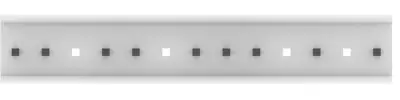

644180-6 AMP PCB Connection Systems Image 2

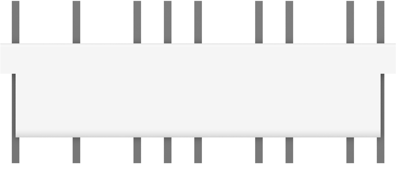

644180-6 AMP PCB Connection Systems Image 3

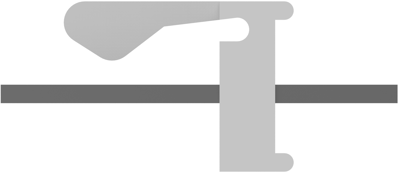

644180-6 AMP PCB Connection Systems Image 4

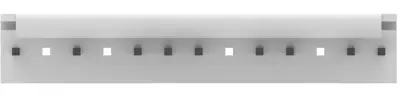

644180-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9397 € *
Available in 5 Days: 43,574 pcs. - if ordered today
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7612 €
50 pcs.
1.5946 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 644180-6, AMP

The 644180-6 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 13 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
