644042-2 | AMP

Socket header, 2 pole, pitch 2.54 mm, straight, red, 644042-2

Order No.: 72P0648
EAN: 4099891738143
MPN:
644042-2
Series: MTA-100

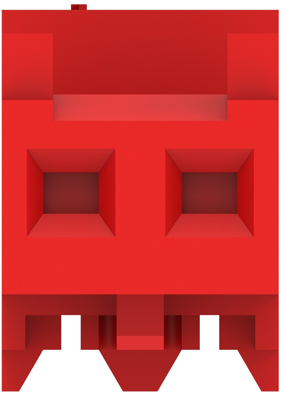

644042-2 AMP PCB Connection Systems Image 1

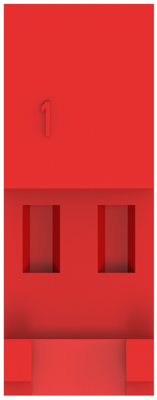

644042-2 AMP PCB Connection Systems Image 2

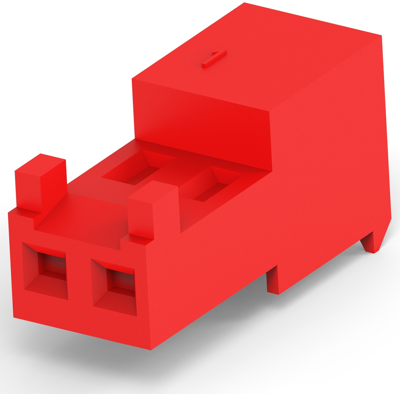

644042-2 AMP PCB Connection Systems Image 3

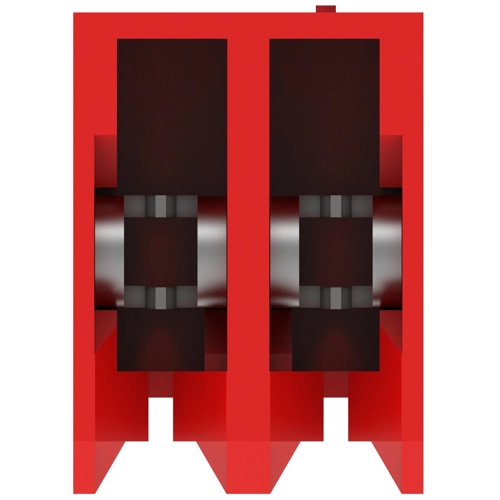

644042-2 AMP PCB Connection Systems Image 4

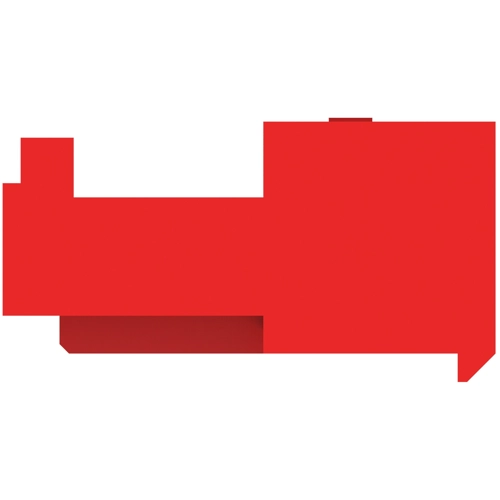

644042-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Available in 5 Days: 2,500 pcs. - if ordered today
Total Price:
253.47 € *
Price list
Quantity
Price per unit*
150 pcs.
1.6898 €
400 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector assembly, 644042-2, AMP

The 644042-2 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour red
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 2 pole
Version socket header
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
