643414-1 | AMP

Pin header, 3 pole, pitch 6.35 mm, straight, white, 643414-1

Order No.: 35P4720
EAN: 4099889934021
MPN:
643414-1

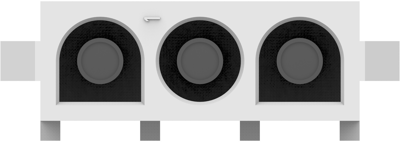

643414-1 AMP PCB Connection Systems Image 1

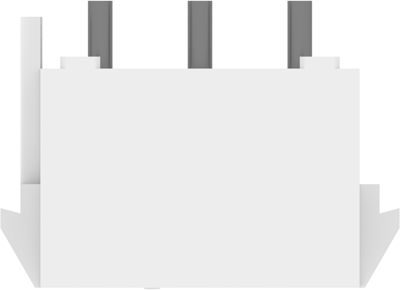

643414-1 AMP PCB Connection Systems Image 2

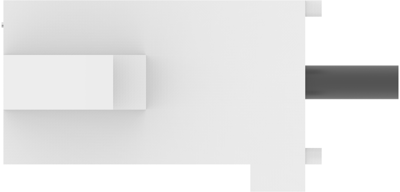

643414-1 AMP PCB Connection Systems Image 3

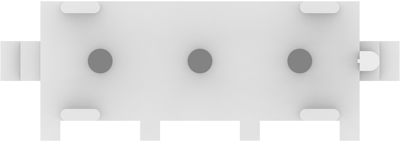

643414-1 AMP PCB Connection Systems Image 4
643414-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2495 € *
Available in 5 Days: 3,000 pcs. - if ordered today
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1186 €
50 pcs.
1.0115 €
100 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 643414-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Number of rows 1
Rated voltage 600 V
Contact type socket
Type of locking Yes
Connection solder pin
contact surface pre-tinned
Pin number 3 pole
Grid 6.35 mm
Connection plating pre-tinned
Orientation straight
Additional parts equipped
Colour white
Version pin header
Rated current 12 A
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
