643410-1 | AMP

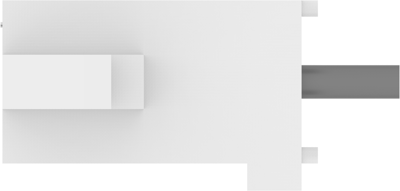

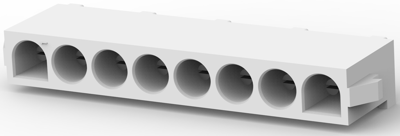

Pin header, 8 pole, pitch 6.35 mm, straight, white, 643410-1

Order No.: 35P4829
EAN: 4099889934885
MPN:
643410-1
643410-1 AMP PCB Connection Systems Image 1
643410-1 AMP PCB Connection Systems Image 2
643410-1 AMP PCB Connection Systems Image 3
643410-1 AMP PCB Connection Systems Image 4
643410-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.3677 € *
Available in 5 Days: 6,005 pcs. - if ordered today
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
3.1059 €
50 pcs.
2.7965 €
100 pcs.
2.5109 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 643410-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour white
Type of locking Yes
contact surface pre-tinned
Rated current 12 A
Grid 6.35 mm
Connection plating pre-tinned
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
