643407-1 | AMP

Pin header, 6 pole, pitch 6.35 mm, straight, natural, 643407-1

Order No.: 35P4814
EAN: 4099889934755
MPN:
643407-1

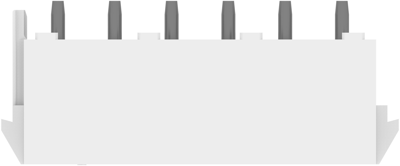

643407-1 AMP PCB Connection Systems Image 1

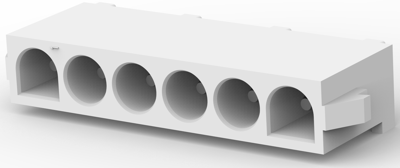

643407-1 AMP PCB Connection Systems Image 2

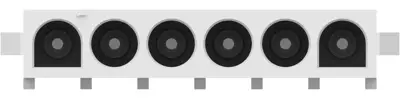

643407-1 AMP PCB Connection Systems Image 3

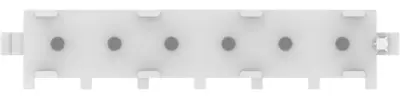

643407-1 AMP PCB Connection Systems Image 4
643407-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7727 € *
Available in 5 Days: 5,093 pcs. - if ordered today
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.5585 €
50 pcs.
2.2967 €
100 pcs.
2.0706 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 643407-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface pre-tinned
Rated current 12 A
Grid 6.35 mm
Connection plating pre-tinned
Pin number 6 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
