643228-1 | AMP

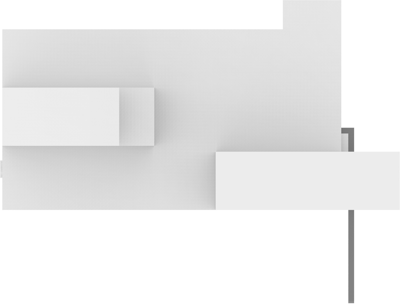

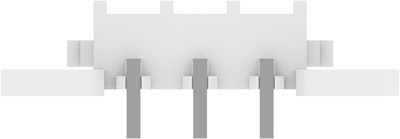

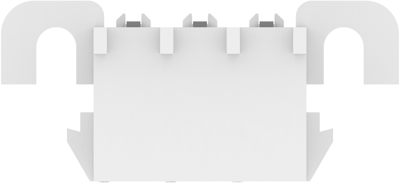

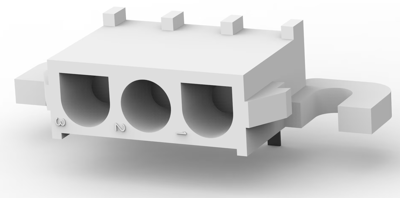

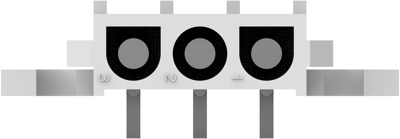

Socket header, 3 pole, pitch 6.35 mm, angled, natural, 643228-1
Unit Price (€ / pc.)
2.4276 € *
Available in 5 Days: 6,736 pcs. - if ordered today
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2491 €
25 pcs.
2.1063 €
50 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 643228-1, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Orientation: angled
- Number of positions: 3
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 6.35 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | natural | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | solder pin | |
| Orientation | angled | |
| Grid | 6.35 mm | |
| Rated voltage | 600 V | |
| Pin number | 3 pole | |
| Version | socket header | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
