641976-4 | AMP

Pin header, 15 pole, pitch 6.35 mm, straight, white, 641976-4

Order No.: 72P0635
EAN: 4099891738051
MPN:
641976-4

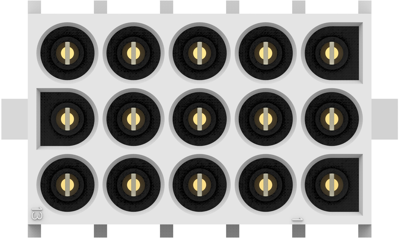

641976-4 AMP PCB Connection Systems Image 1

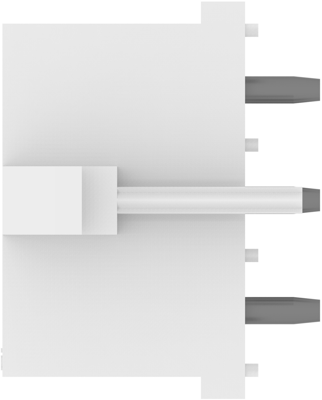

641976-4 AMP PCB Connection Systems Image 2

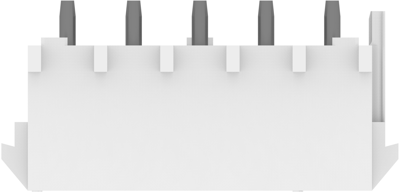

641976-4 AMP PCB Connection Systems Image 3

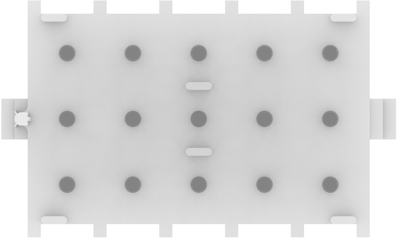

641976-4 AMP PCB Connection Systems Image 4

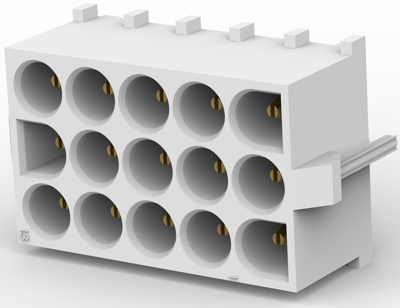

641976-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
15.8865 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
15.89 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8865 €
10 pcs.
14.7441 €
25 pcs.
13.7683 €
50 pcs.
12.5188 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 641976-4, AMP

Rectangular power connector, Header, Plug, Wire-to-Board, 15 Position, 6.35 mm Centerline, Printed circuit board.

Technical specifications
Filter Property Value
Connection plating tin-plated
Pin number 15 pole
Number of rows 3
Type of locking Yes
Colour white
Rated current 19 A
contact surface gold-plated
Connection solder connection
Orientation straight
Additional parts equipped
Rated voltage 600 V
Contact type pin
Grid 6.35 mm
Version pin header
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
