641974-1 | AMP

Pin header, 12 pole, pitch 6.35 mm, straight, white, 641974-1

Order No.: 35P4862
EAN: 4099889935196
MPN:
641974-1

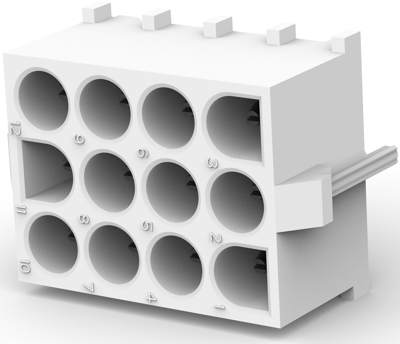

641974-1 AMP PCB Connection Systems Image 1

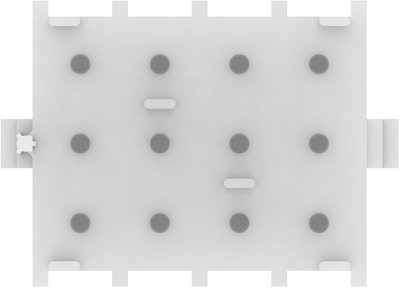

641974-1 AMP PCB Connection Systems Image 2

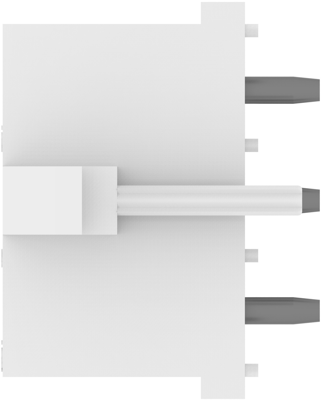

641974-1 AMP PCB Connection Systems Image 3

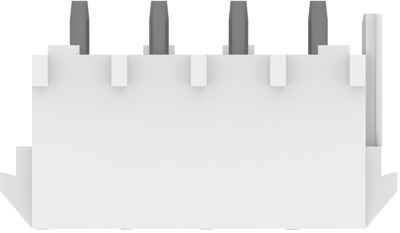

641974-1 AMP PCB Connection Systems Image 4

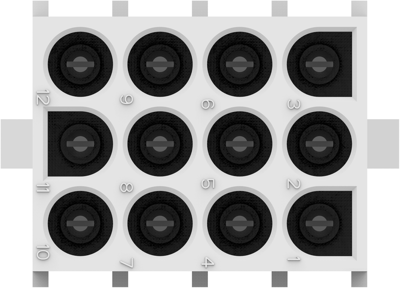

641974-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Available in 5 Days: 4,171 pcs. - if ordered today
Total Price:
11.19 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2372 €
10 pcs.
2.0706 €
25 pcs.
1.9278 €
50 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 641974-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type pin
Connection plating pre-tinned
contact surface pre-tinned
Version pin header
Rated current 12 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 3
Colour white
Pin number 12 pole
Connection solder pin
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
