641969-1 | AMP

Pin header, 6 pole, pitch 6.35 mm, straight, natural, 641969-1

Order No.: 35P4819
EAN: 4099889934809
MPN:
641969-1

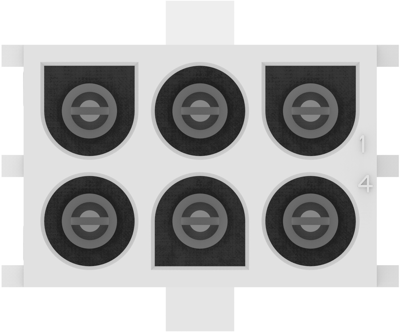

641969-1 AMP PCB Connection Systems Image 1

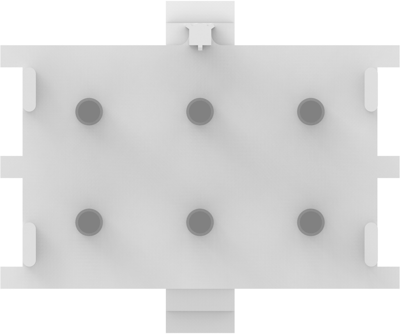

641969-1 AMP PCB Connection Systems Image 2

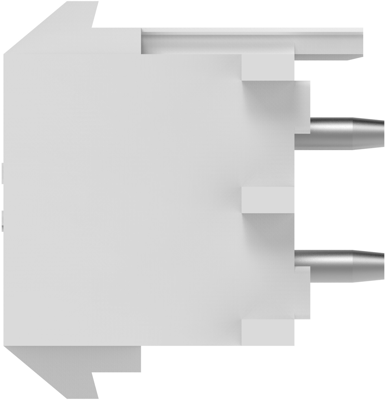

641969-1 AMP PCB Connection Systems Image 3

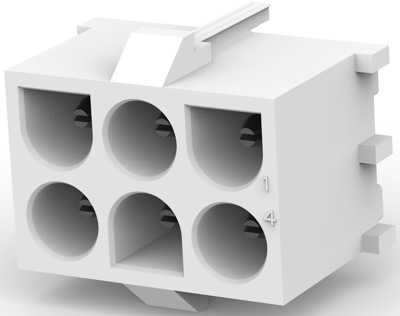

641969-1 AMP PCB Connection Systems Image 4

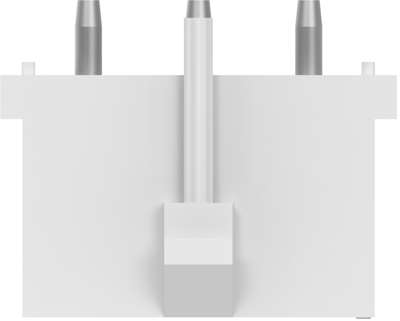

641969-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6660 €
50 pcs.
1.4994 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 641969-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Connection plating pre-tinned
Rated voltage 600 V
Version pin header
contact surface pre-tinned
Connection solder pin
Contact type pin
Additional parts equipped
Rated current 12 A
Pin number 6 pole
Colour natural
Type of locking Yes
Orientation straight
Number of rows 2
Grid 6.35 mm
Logistics
Country of origin JP
Customs tariff number 85366930
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
