641966-1 | AMP

Pin header, 3 pole, pitch 6.35 mm, straight, white, 641966-1

Order No.: 35P4734
EAN: 4099889934120
MPN:
641966-1

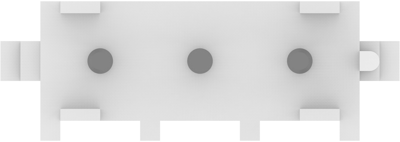

641966-1 AMP PCB Connection Systems Image 1

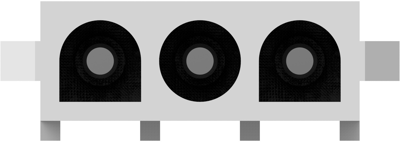

641966-1 AMP PCB Connection Systems Image 2

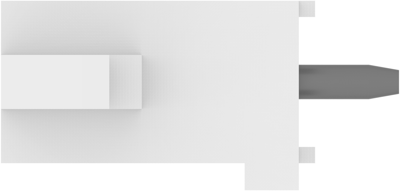

641966-1 AMP PCB Connection Systems Image 3

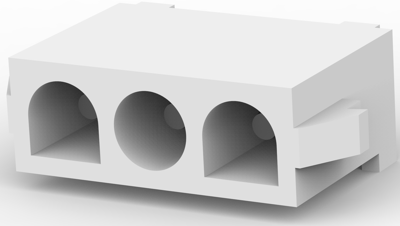

641966-1 AMP PCB Connection Systems Image 4

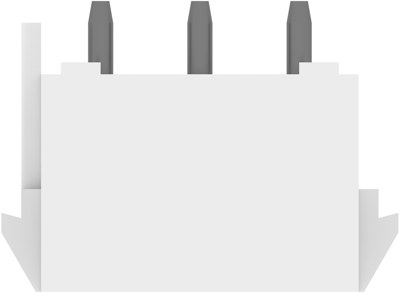

641966-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available in 5 Days: 2,419 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6422 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 641966-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour white
Type of locking Yes
contact surface pre-tinned
Rated current 19 A
Grid 6.35 mm
Connection plating pre-tinned
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin JP
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
