641963-3 | AMP

Pin header, 2 pole, pitch 6.35 mm, straight, natural, 641963-3

Order No.: 35P4709
EAN: 4099889933956
MPN:
641963-3

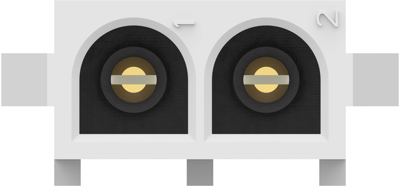

641963-3 AMP PCB Connection Systems Image 1

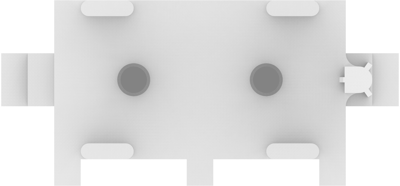

641963-3 AMP PCB Connection Systems Image 2

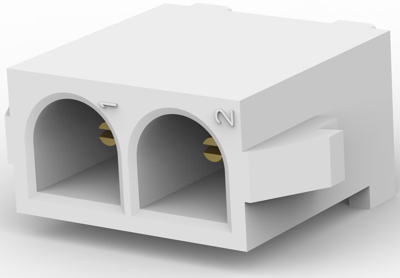

641963-3 AMP PCB Connection Systems Image 3

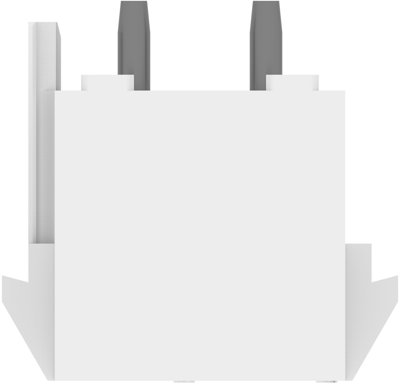

641963-3 AMP PCB Connection Systems Image 4
641963-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
3,681.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
3400 pcs.
1.0829 €

PCB Connection System, 641963-3, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface gold-plated
Rated current 19 A
Grid 6.35 mm
Connection plating tin-plated
Pin number 2 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
