641936-1 | AMP

Pin header, 9 pole, pitch 3.96 mm, straight, natural, 641936-1

Order No.: 72P0632
EAN: 4099891738020
MPN:
641936-1
Series: MTA-156

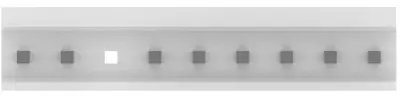

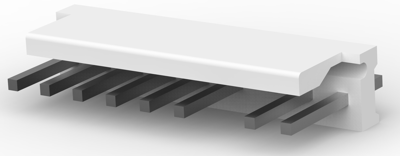

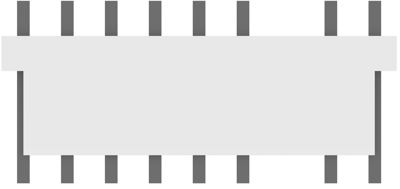

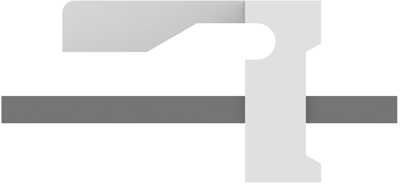

641936-1 AMP PCB Connection Systems Image 1
641936-1 AMP PCB Connection Systems Image 2
641936-1 AMP PCB Connection Systems Image 3
641936-1 AMP PCB Connection Systems Image 4
641936-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2138 €
10 pcs.
1.1186 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 641936-1, AMP

Rectangular power connector, Header, Plug, Wire-to-Board, 9 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.

Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 9 pole
Connection solder connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
