641922-3 | AMP

Pin header, 8 pole, pitch 3.96 mm, straight, natural, 641922-3

Order No.: 72P0630
EAN: 4099891738013
MPN:
641922-3
Series: MTA-156

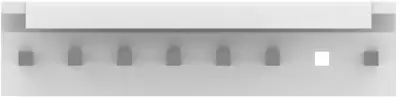

641922-3 AMP PCB Connection Systems Image 1

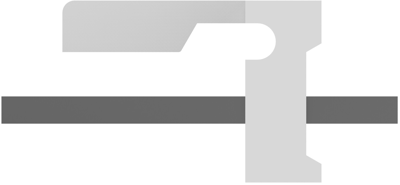

641922-3 AMP PCB Connection Systems Image 2

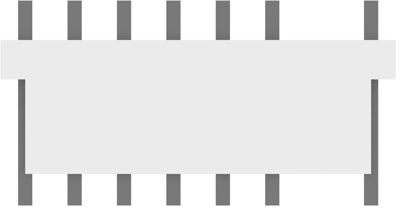

641922-3 AMP PCB Connection Systems Image 3

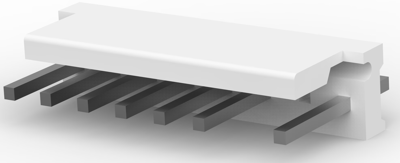

641922-3 AMP PCB Connection Systems Image 4

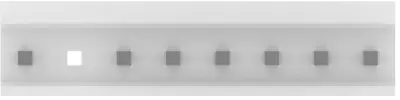

641922-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 5,000 pcs. - if ordered today
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4403 €
10 pcs.
0.4046 €
25 pcs.
0.3808 €
50 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 641922-3, AMP

Rectangular power connector, Header, Plug, Wire-to-Board, 8 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.

Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 8 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
